Business oxidized black appearance, slim ultra-narrow edge design, high-precision infrared, touch control, smart pen writing, smooth Android11.0 system

Parameters

Product name

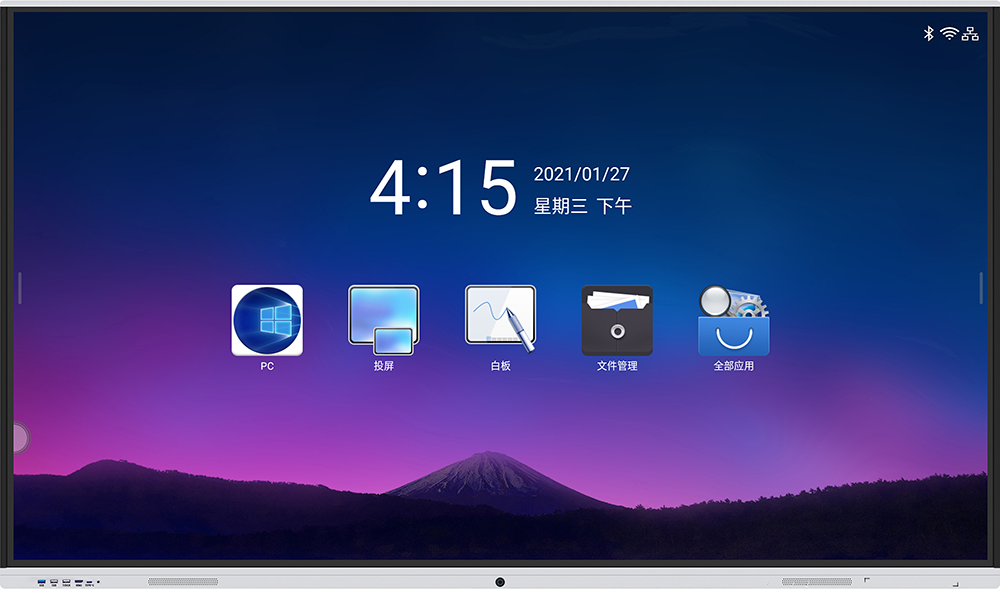

100-inch 4K riot-proof touch all-in-one machine

Product model

PFT-F100EX

Product configuration

4+32G

Main features

Business oxidized black appearance, slim ultra-narrow edge design, high-precision infrared, touch control, smart pen writing, smooth Android11.0 system

Product details

Product Introduction

100-inch interactive flat panel, black aluminum profile appearance, using internationally renowned brand LCD panel, ultra-high-definition 3840*2160 resolution, low power consumption, wide viewing angle. Direct-down LED backlight, more uniform display brightness, wider color gamut. Industrial-grade design, with ultra-high reliability and high stability. Touch technology uses high-precision infrared touch frame, and the resolution can be as high as 32767*32767 through interpolation algorithm.

Features

• Professional hard screen technology, large viewing angle, fast response speed, high color reproduction, no water ripple deformation when pressed by hand;

• High contrast, brighter picture display, more outstanding color performance;

• Direct-down LED backlight mode, more uniform brightness performance;

• Viewing angle can reach 178°, close to horizontal;

• Industrial-grade design, high reliability, high stability, low power consumption, lifespan up to 30,000 hours

• Support 20-point touch

• Support multiple image signal input (HDMI, VGA, AV);

• Support OSD full touch menu;

• Support USB multimedia playback function: picture display, movie playback, music playback, text playback function

•Android system functions:

1. Android11.0 embedded system;

2. Support 20-point touch writing experience to meet the needs of different users;

3. Android whiteboard intelligent thick and thin pen writing, with its own pen tip, restore writing handwriting;

4. Scan the meeting code to easily take away the meeting minutes, making data sharing more convenient;

5. Support continuous annotation under any channel;

6. Support custom replacement of static wallpaper;

7. Support timed sleep standby of equipment to save energy and reduce consumption;

8. Support custom no-signal standby time;

9. Support five-finger screen off and three-finger follow;

10. Support automatic hiding of sidebar shortcut keys without operation;

11. Intelligently identify signal sources and connect to external The signal automatically jumps into the port channel;

12. Supports switching of three major system themes, namely conference theme, education theme, and classic theme;

13. The floating icon supports 6 shortcut function menus: return, whiteboard, OPS computer, annotation, taskbar, and Android homepage;

14. Supports clicking the left and right sidebars under any channel to expand the function menu, namely return to the previous page, return to the homepage, system settings, file management, signal source list (channel switching), control panel (can open shortcut functions and applications, adjust sound brightness, etc.), power options (shutdown, shut down OPS, sleep and restart), and the sidebar will automatically hide after 10S without any operation in the expanded state;

Parameters

Panel parameters	Size	100”
	Backlight type	D-LED
	Resolution	3840×2160
	Display size (mm)	2158（H）×1213（V）
	Pixel pitch (mm)	0.315(H) x 0.315(V)
	Response time	8ms (typ.)
	Brightness	350nit
	Contrast	Minimum 800, typical 1200
	Viewing Angle	178° (vertical, horizontal)
	color	1.07B
	Color saturation (sRGB)	99%
	Display Scale	16:9
	Refresh rate	60Hz
Touch parameters	Touch specifications	Infrared touch frame
	Glass specifications	3mm tempered glass
	Touch points	20点
	Response time	<8ms
	Touch accuracy	More than 90% of the touch area is ±1 mm
	Output format	HID Standard
	Theoretical clicks	Unlimited
	Touch diameter	Single point 2.5mm
System Parameters	Plan	T982
	CPU	CORTEX Quad-core A55+NPU 2.6 Tops
	Memory	4G
	Storage	32GB
	System version	Android 11.0
Signal interface	MIC input port	*1 (3 in 1 port)
	VGA input interface	*1
	Audio Input Interface	*1
	HDMI input interface	*3
	USB 2.0	*2
Output Interface	Earphone OUT	*1 (3 in 1) port
Other interfaces	TOUCH-USB	*1
Other interfaces	RS232	*1
Network	RJ45 input interface	*1
Network	WiFi	2.4G WiFi + 5G screen projection hotspot
Structural dimensions	Net weight	88KG
	Gross Weight	102KG

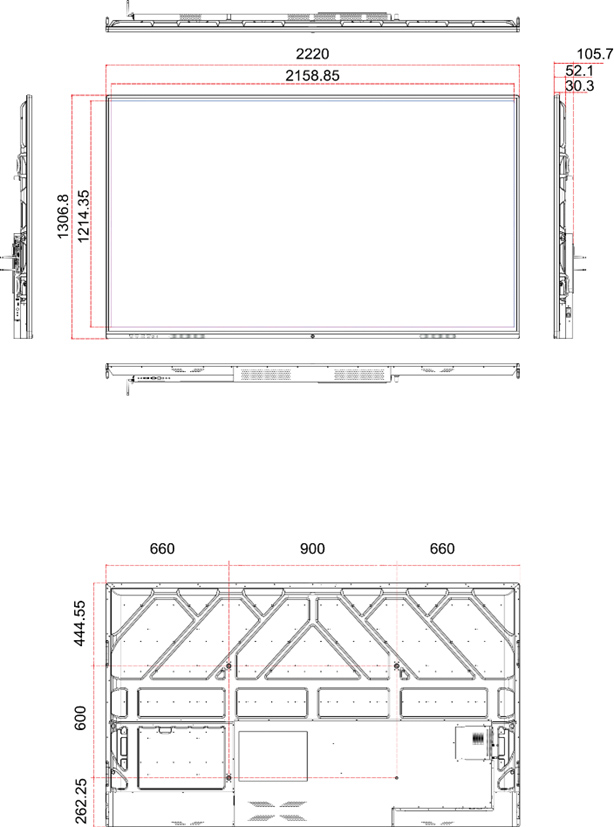

	Bare metal dimensions	2220（L）105.7（W）1306.8（H）
	Packing size	2435 (L) * 275 (W) * 1415 (H) (integrated box)
	Housing Material	Aluminum profile/sheet metal
Power consumption	Power input voltage	100 V ~ 240 V/AC，50/60 Hz
	Machine power	≤500W (excluding OPS), supporting OPS power ≤80W
	Standby power	<0.5W
	Speaker specifications	Stereo sound, 2*10W (±15%) high and low bass speakers
Work Environment	Operating temperature	-10℃～50℃
	Operating humidity	20%～85% RH Non-Condensing
	Storage temperature	-10℃～60℃
	Storage humidity	10%～90% RH Non-Condensing
Appendix	Power cord	1 piece (1.5m)
	Manual	1
	Remote control (with batteries)	1
	Wall mount	1
	Touch pen	1
	HDMI cable	1(1.5m)
