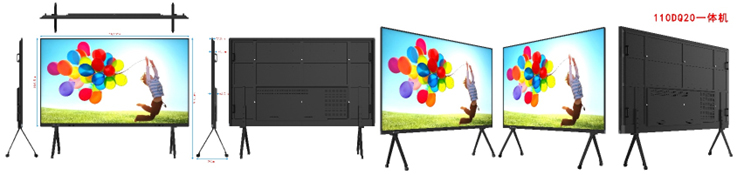

Product Appearance
	The mobile base is an optional accessory and needs to be purchased separately
Product Attributes	Product Model		PFT-F110EX
	Camera		Built-in 1300W camera + array microphone
	Product Type		Interactive touch all-in-one machine
	Product Positioning		High-end
panel	LCD Size		110"
	LCD Suppliers		BOE
	Panel Model		DVA10QUB-N10
	Backlight		LED (direct type structure)
	Resolution		3840*2160
	Brightness (typ)/(min)		350nit
	Contrast ratio (typ)/(min)		3000:1
	Response time (typ)/(min)		8ms (Typ.)
	Pixel pitch (unit: um)		211.5(H) × 634.5(V)
	Frame rate		120Hz
	Viewing angle		H 178°，V 178°
	Life (typ)/(min)		50000h
	Color saturation (x% NTSC)		68%
	Viewing area		2436.48(H) × 1370.52(V)
	Color		1.07B
Android system properties	CPU	Architecture	A73	Hi3751 V811 main chip
		Working frequency	1.5GHz
		Number of cores	Dual-core A73 and dual-core A53 ，1.5GHz (2+2)
	GPU		Quad-core MaliG51
	Internal cache capacity (RAM)		4G Byte (DDR4)
	Internal storage capacity (ROM)		32G Byte
	System version		Android 11.0
Input and output interface	TV input interface		/
	HDMI out		1
	HDMI in		3	2 onboard ports, 1 front port
	TV-USB2.0 in		1	Front interface 1 way
	TV-USB3.0 in		2	Onboard 2-way
	Ethernet in		RJ45 standard interface*1
	Ethernet out		/
	WIFI		2.4G+5G (built-in module)
	DP in		/
	VGA in		1
	PC-Audio in		1
	VGA out		/
	PC-Audio out		/
	Earphone out		1
	AV out		1	Mini earphone jack
	SD card		1	TF Reader
	YPBPR in		/	Mini earphone jack
	AV in		1	Mini earphone jack
	SPDIF out		1
	Coaxial out		/
	Touch-USB		2（USB2.0-B）	1 onboard, 1 front interface
	Type C		1	Onboard
	RS232		1
	MIC in		1
Sound	Speaker power		2×10W(8Ω) THD+N<10%@1KHz
	Frequency Response		100Hz~15K Hz @±3dB(1KHz, -12dB reference signal)
	Speaker Type		Box speakers, stereo
	Radiation direction		forward
Front interface	PC USB3.0 (OPS extension)		1
	TV USB2.0 (motherboard expansion)		1
	Touch-USB - Type B		USB2.0/B*1
	HDMI in		1
Front buttons	One-touch control		Power on /off	PC power on and off controlled by Android system
structure	Net weight		120kg
	Gross Weight		152kg
	Bare metal dimensions (W x D x H)		2503.7mm92.7mm1466.5mm (Main body thickness: 55mm)
	Packing size (W x D x H)		2685×285×1710mm (lengthwidthheight) honeycomb carton + pearl cotton
	Housing Material		Die stamping back panel + metal back cover + aluminum alloy brushed front frame
	Shell color		All black
	VESA holes		1600mm*700mm
language	OSD		Chinese, English
Touch parameters	Touch specifications		Non-contact infrared sensing technology, supports 20 points
	Glass		Tempered 4mm (physical tempered Mohs 7 explosion-proof, anti-glare, etching requires special customization)
	Glass transmittance		＞92%
	Appearance Material		Aluminum alloy + galvanized sheet powder coating
	Appearance Color		Black
	Resolution		32767(W)×32767(D)
	Response speed		Single-point mode: 8ms for click, 3ms for continuous Multi-point mode: 8ms for click, 5-8ms for continuous Two-point touch at the same time: 8ms for continuous
	Touch accuracy		≤2mm
	Input method		Opaque objects (such as fingers, pens, etc.)
	Output format		Coordinate output
	Theoretical clicks		Unlimited
	Minimum touch object		Single point: Ø5mm
			Multi-point: Ø8mm
	Light resistance		Incandescent lamp (220V, 100W), the illumination of sunlight above 350mm vertical distance reaches 90000Lux
	Electrical properties	Interface Type	Type A USB male
		Communication Type	USB2.0 full speed (12Mbps)
		Power supply mode	USB (USB powered)
		Power supply mode	DC 5.0V±5%
		Working current	＜500mA
		Static Electricity Level	According to IEC61000-2-4 Class B, contact discharge 4 KV, air discharge 8 KV
Packing List	Remote Control		1
	Power cord		1
	Whiteboard Marker		1
	Pointer		1
	Manual		1
	Warranty card		1 (Integrated with the instruction manual)
	Mobile base (aluminum die-casting, sandblasting)		Optional
	Wall bracket		Optional
	Mobile stand		Optional
Usage Environment	Operating temperature		0℃-40℃
	Storage temperature		-20℃～60℃
	Operating humidity		10%-90% no condensation
	Maximum usage time (hours/day)		18 hours
power supply	Input voltage		Rated 100-240V～ 50/60Hz
	Maximum Power		880W (under OPS state) 810W in other states
	Standby power		＜0.5W
	Power switch		Rocker type double pole switch
Some functions	One-button power on/off		Support Android power on/off, PC is controlled by Android
	Wireless screen projection from mobile phone		Support
	Computer wireless screen projection		Support	A screen projector is required
	Dual-frequency transmitter hotspot		Support (2.4G+5G hotspot)
	Smart whiteboard		Support
	Office software, file classification		Support
	Screen recording and screenshot		Support
	Welcome Template		Support
	Multiple type interfaces		Support
	One-touch energy saving		Without turning off the power of the whole machine, the LCD screen backlight can be turned off or on with one key to achieve power saving function and single listening function
	Dual system		Support (OPS is an optional accessory)	OPS specifications: i3, i5, i7 optional
	Soft central control		Without any buttons, you can use gestures to call up the screen touch control to achieve return, home page, process termination, channel switching, annotation, brightness, volume and other controls in any signal channel.
	One-click lock screen		Configure the remote control. In addition to the TV remote control function, you can lock/unlock the touch and device buttons with one click on the remote control.
	Intelligent signal switching		Plug in an external computer, automatically search for signals and prompt or automatically switch to ensure ease of use
	Intelligent multimedia playback		Can automatically identify TV-USB storage, prompt and switch to the TV board's built-in media player
	Anti-glare tempered glass		Support	Need customization
	Intelligent brightness adjustment		The whole machine can sense and automatically adjust the screen brightness to achieve the best display effect in different lighting environments	Hardware support required
	Remote video conferencing		Support	Using third-party software support
	Open System		Open Android system, you can freely install various APKs
