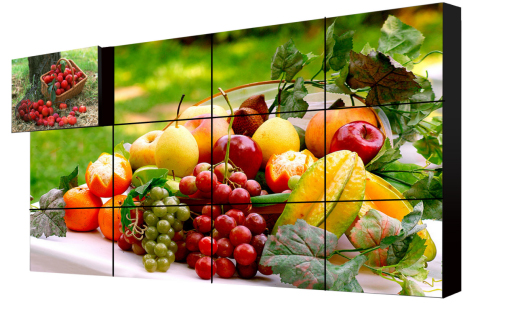

WPS-F4600-0.88mm adopts BOE original module and industry-leading direct-type LED backlight, with good color reproduction, realistic image, ultra-dense dot distribution, and uniform backlight brightness. It is a DID LCD splicing with energy saving, environmental protection, long life, wide viewing angle, and high stability, suitable for commercial display industry, video conferencing industry, security monitoring and other industries.

Parameters

Product overview

Product details

Product function

System characteristics

1. The processor adopts a unique embedded structure design, which can accept various image signal source inputs, directly drive a full range of large-size LCD screens, and after segmentation and amplification, it can be displayed on various large-screen image splicing walls in real time without distortion. The processing process is completely hardware-based.

2. Full hardware architecture, no CPU and operating system; no virus infection risk, good security.

3. Energy saving and environmental protection, in line with national energy-saving standards, standby power consumption is less than 0.5W.

4. The encryption processor has a built-in registration function, which is the most perfect and rigorous encryption method on the market.

5. The built-in time system can realize the scheduled power on and off of the year, month, day, and week.

6. It has a color temperature correction system, which can quickly adjust the color difference when there is a color difference on the screen.

7. Support intelligent signal switching, automatic signal recognition and automatic switching, without remote control and control software.

8. Support intelligent photosensitivity, automatically adjust the backlight brightness of the large screen according to the ambient light intensity.

9. Support the power-on LOGO splicing function (please explain if this function is needed), support USB fast upgrade, convenient and fast. USB supports playing high-definition videos, advertisements, etc. for personalized projects.

10. Large-screen control software supports matrix linkage, which is easy to operate. It has built-in multiple matrix protocols to meet market demand. It can provide development protocols to facilitate customers to flexibly adopt third-party central control systems or compile software to construct large-screen engineering systems.

11. Output characters support two subtitle implementation functions

(1) A subtitle function inside the board (please specify if this function is needed)

(2) A computer screen function

(3) Control software supports Android mobile phone control of large screen

2.1 LCD splicing screen

1. Adopting the latest generation of DID digital light processing technology, all devices adopt modular design.

2. With good stability, reliability, security, and good expansion capability of the number of display signals.

3. Support multi-screen image splicing, the picture can be displayed in full screen or split screen, and there is no non-linear distortion effect in the full screen range.

4. The brightness of the entire screen is uniform, without dark corners or bright corners, and the picture is stable and flicker-free.

5. It has the characteristics of high resolution, high brightness, high definition and wide contrast range.

6. Support HDMI/DVI signal input, built-in 3D noise reduction, motion compensation, deinterlacing image processing functions.

2.2 Image Processor

1.1. Support DVI/HDMI signal input and DVI signal output.

2. The control software supports the WINDOWS operating platform, adopts the Server/Client structure mode, and the software follows the TCP/IP protocol.

3. It can set, store and manage multiple plans, set the window size and position of the display signal, store the user setting template in the form of a file, and call the stored display plan at any time, trigger it according to time or shortcut keys, and realize automatic display of the picture.

4. The signal window can realize multi-functional operation (the user can directly scale, roam, hide, switch, etc. the network, RGB signal and video signal windows on the client software, and can be stored as a plan).

5. The client software can display the windows of each video, RGB, network, etc. at the same time (screen return function); any client software can display the working status of each component of the display wall controller, such as: motherboard temperature, CPU temperature, fan speed, etc. (system monitoring function).

6. Ultra-high-resolution pictures, PPT, application software (GIS system or SCADA system, etc.) can be run directly on the multi-screen image splicing controller.

7. The processor power redundancy and hot-swap function have the function of accurate synchronization of multi-screen signals on the display wall.

8. The display wall controller control protocol can be opened to users to facilitate secondary development.

Application area

Real estate display industry
Video conferencing industry
Security monitoring industry
Outdoor advertising industry
Entertainment KTV industry
Internet cafe display industry
Touch teaching industry
Public display industry

Product parameter

	Model	PFT-F4600-0.88mm
Panel	LCD Size	46 inches
	LCD Supplier	BOE
	Panel Model	DV460FHM_NV2
	light source	LED backlight
	Resolution	1920*1080
	Brightness	500cd/m²
	Contrast	3000：1
	Reaction time	8 ms
	Pixel pitch	176.75（H）*530.25（V）
	Viewing angle	178°/178° (horizontal/vertical)
	Viewing area	1018.08(H)*572.67(V)
	Display Color	16.7M
	Weight	16KG
Power supply	Operating voltage	100-240V，50-60Hz
	Maximum Power	≤240W
	Standby power	0.5W
Environmental requirements	Operating temperature	0℃～50℃
	Operating humidity	10%～90%
	Storage temperature	-20℃～60℃
	Storage humidity	10%～90%
Input and output interface	USB port	1 set (for firmware upgrade only)
	RS232 Input	1 group
	RS232 output	2 group
	HDMI interface	2 group
	DVI	1 group

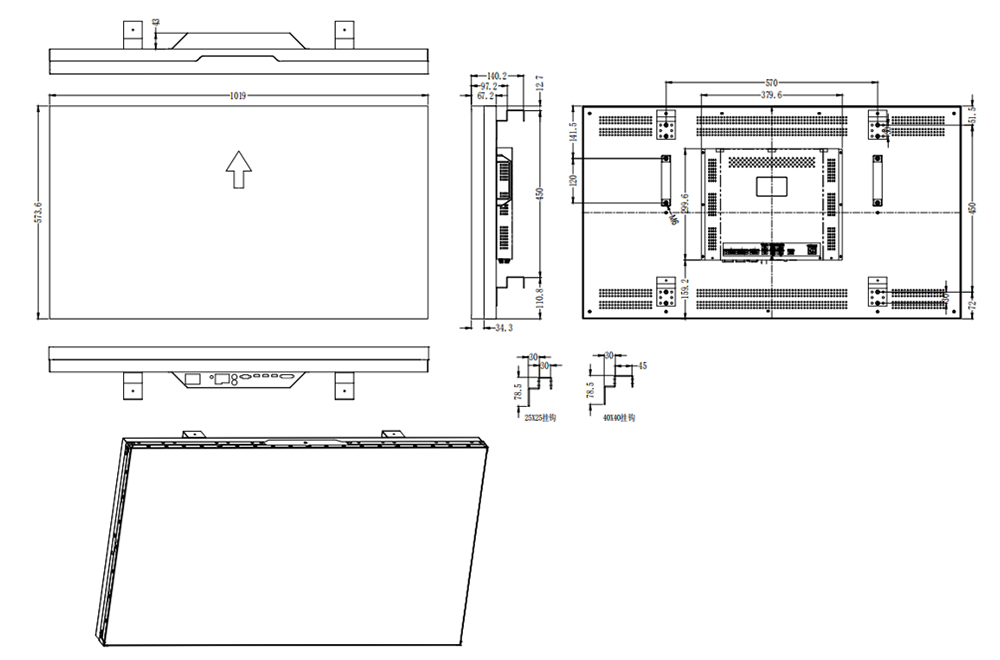

Other	Machine size	1019573.667.2mm
	Single packing	1095190655
	Double packing	1095320655
	Shell color	Black
	Patchwork	0.88mm
Appendix	Product Brochure	1
	Warranty card	1
	Power cord	1
	Network cable	1
	Plug-in board	1
	Remote Control	1
