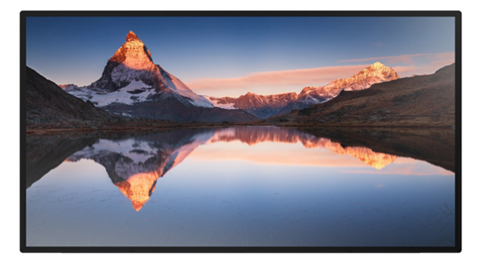

50 inch quadrilateral wall-mounted information release screen non-touch 4+32G 4K
Product name
A 50-inch information release screen can be hung horizontally and vertically on four equal sides.
Product model
WPS-C5000-L（B）
Specification parameter
4+32G 4K
key property
Cloud management, tempering and riot prevention, 24 hours a day, smooth Android11 system.
- Parameters
Product name
A 50-inch information release screen can be hung horizontally and vertically on four equal sides.
Product model
WPS-C5000-L（B）
Specification parameter
4+32G 4K
key property
Cloud management, tempering and riot prevention, 24 hours a day, smooth Android11 system.
Product introduction
50-inch information release screen, using internationally renowned brand LCD panel, high-definition decoding resolution of 3840*2160, low power consumption and wide viewing angle. Side-entry LED backlight has more uniform display brightness and wider color gamut. Industrial design, with super high reliability and high stability. Information release screen is a platform for centralized management and control of information release for chain applications. The system can be centralized, regionalized and managed by single terminal, realizing the unification of remote publishing and management.
Functional characteristics
- High integration: integrating USB/LVDS/HDMI/ Ethernet /WIFI to simplify the design of the whole machine.
- Rich expansion interface: support 100M/10M adaptive Ethernet; 1 USB 3.0 host；; One USB2.0-OTG, one HDMI IN, one TF card and one headphone jack can meet the requirements of various peripherals in the market.
- High definition: maximum support for 1920*1080 decoding.
- Full-featured: support for horizontal and vertical screen playback, scrolling subtitles, timing switch, USB data import and other functions.
- Convenient management: humanized playlist background management software is convenient for management and control. Play the log, which is convenient to understand the playback situation.
- ETV information publishing software can publish information videos through computer client, IE browser or WeChat applet.
Specification parameter
| Subject parameter | Product color | black |
| Product category | Information release screen | |
| Optimum viewing distance (m) | ≥1m | |
| listing date | 2023 | |
| energy efficiency index | First-class energy efficiency | |
Product size Screen parameters | Backlight type | LED side-entry backlight |
| Screen size ratio | 50 inches, 16:9 | |
| resolution ratio | 3840*2160 | |
| brightness | 350cd/m2 | |
| contrast | 3000:1 | |
| Display color | 1.07B(10bit) | |
| visual angle | The full viewing angle is 178/178/178/178. | |
| brightness control | Debugging | |
| Overall machine size | Length 1131.2mm* height 651.8mm* thickness 52.1mm | |
| Display area | 1095.84 (width) × 616.41 (height) | |
Motherboard configuration | CPU | T982 Android 11 Quad-Core Cortex-A55, with a maximum frequency of 1.92GHz. |
| Random Access Memory | Memory: 4GB DDR3 | |
| Storage flash memory | 32GB EMMC NAND chip comes standard by default. | |
| Video | Support for high definition with superior computing performance, 2D/3D graphics processing capability and full HD video codec capability. HDMI 1.4 standard display interface | |
| trumpet | 8 Ω ·10W Dual Audio Power Amplifier Output | |
| port | 1*USB2.0-OTG, 1*USB3.0-HOST,1*RJ45,1*HDMI IN, TF card, earphone. | |
Process appearance | design | Novel and beautiful, reasonable layout and standard wiring. Ergonomic design; |
| texture of wood | Aluminum profile, cold-rolled steel plate, not easy to deform, cabinet and module parts are closely combined, and the lower base is not easy to swing with screws. | |
| surface treatment | Aluminum profile edging and surface toughened glass | |
| Aluminum paint sleeves are optional. | High gloss paint/matte paint/industrial paint, no need to worry about falling off or rusting. | |
| Style optional | Rounded apple models/and styles on them can be selected. | |
| Power Supply | Built-in safe and reliable power supply external lead and special socket; | |
| Size and weight | Overall power | ≤100W |
| attachment | Instructions, power cord, | |
| ETV network information publishing software, free of charge. | ||
| package | Length 1210mm* height 738mm* thickness 120mm. | |
| weight | 28kg | |
| Wall hanging size | Hanging plate fixing plate (400*400mm) | |
Working environment | Working temperature | -10～+50℃ |
| Working humidity | 10～98% | |
| storage temperature | 10～98% |
Product size
