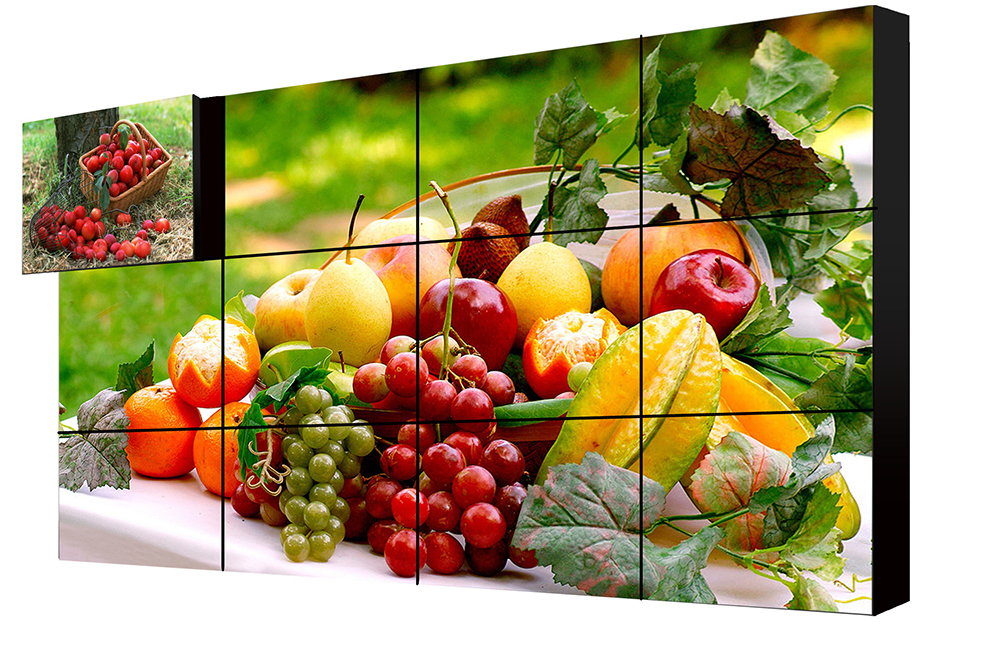

55-inch 1.7mm splicing screen
1. Ultra-narrow seam, ultimate splicing effect: LCD splicing unit, using ultra-narrow bezel display panel, ultra-narrow bezel design makes the gap between screens smaller, its physical width is only 1.7mm, which can shorten the distance between each screen image, present you with a more complete and coherent large-screen image, make the real area fuller, and make your work more efficient;
2. Modular LCD unit, easy to install and maintain;
3. LED backlight, the most advanced backlight system, grid-shaped crystal arrangement, bright bright field, low light leakage in dark field;
4. It has high-definition FHD picture quality, extremely high text clarity, high stability and long life, thin appearance, no radiation, low power consumption and other advantages. It is designed strictly in accordance with international and industry standards, and gradually becomes the mainstream of the terminal display market, becoming the best choice for large-screen splicing display equipment;
5. Intelligent splicing of pictures, intelligent combination at will, single screen and multiple screens can be freely matched;
6. Screen brightness up to 500nit, good color reproduction, realistic picture;
- Parameters
1. Ultra-narrow seam, ultimate splicing effect: LCD splicing unit, using ultra-narrow bezel display panel, ultra-narrow bezel design makes the gap between screens smaller, its physical width is only 1.7mm, which can shorten the distance between each screen image, present you with a more complete and coherent large-screen image, make the real area fuller, and make your work more efficient;
2. Modular LCD unit, easy to install and maintain;
3. LED backlight, the most advanced backlight system, grid-shaped crystal arrangement, bright bright field, low light leakage in dark field;
4. It has high-definition FHD picture quality, extremely high text clarity, high stability and long life, thin appearance, no radiation, low power consumption and other advantages. It is designed strictly in accordance with international and industry standards, and gradually becomes the mainstream of the terminal display market, becoming the best choice for large-screen splicing display equipment;
5. Intelligent splicing of pictures, intelligent combination at will, single screen and multiple screens can be freely matched;
6. Screen brightness up to 500nit, good color reproduction, realistic picture;
Product parameters:
| Panel | Model | PFT-F55-1.7mm |
| LCD screen size | 55 inches | |
| Resolution | 3840*2160 | |
| Aspect ratio | 16:9 | |
| Brightness | 350cd/㎡ | |
| Contrast ratio (typ) | 3000:1 | |
| Viewing angle | 178 degrees | |
| Response time (ms) | 5（ms） | |
| Viewing area | 1209.6×680.4mm | |
| Display Color | 1.07B | |
| Power supply | Voltage | 100V-240,50-60Hz |
| Maximum | ≤200W | |
| Standby | ≤3W | |
| Environment | Operating temperature (°C) | 0℃～50℃ |
| Storage temperature | -20℃～60℃ | |
| Storage humidity | 10%～90% | |
| Operating humidity | 10%～90% | |
| Input Interface | 2-way HDMI | The maximum supported signal input is 3840×2160@30HZ. Other resolutions are backward compatible. |
| 1 RJ45 | R232 control signal input, IR signal input | |
| 1-way USB | Support multimedia video, picture, text file viewing, program upgrade | |
| Output Interface | 2-way RJ45 | R232 control signal output, IR signal input loop output |
| Dimensions and weight | Net weight | 约25Kg |
| Physical seam size (mm) | 1.7mm | |
| Unit size (W×H×D) | 1211.7×682.6×55mm | |
| Industry Standards | Quality Standards | China Compulsory Certification (CCC) |
| Environmental standards | All components and auxiliary materials meet environmental protection standards | |
| Other | Installation | Cabinet type, wall type, bracket type |
| Appearance Color | Black | |
| How to operate | RS232 serial port control |

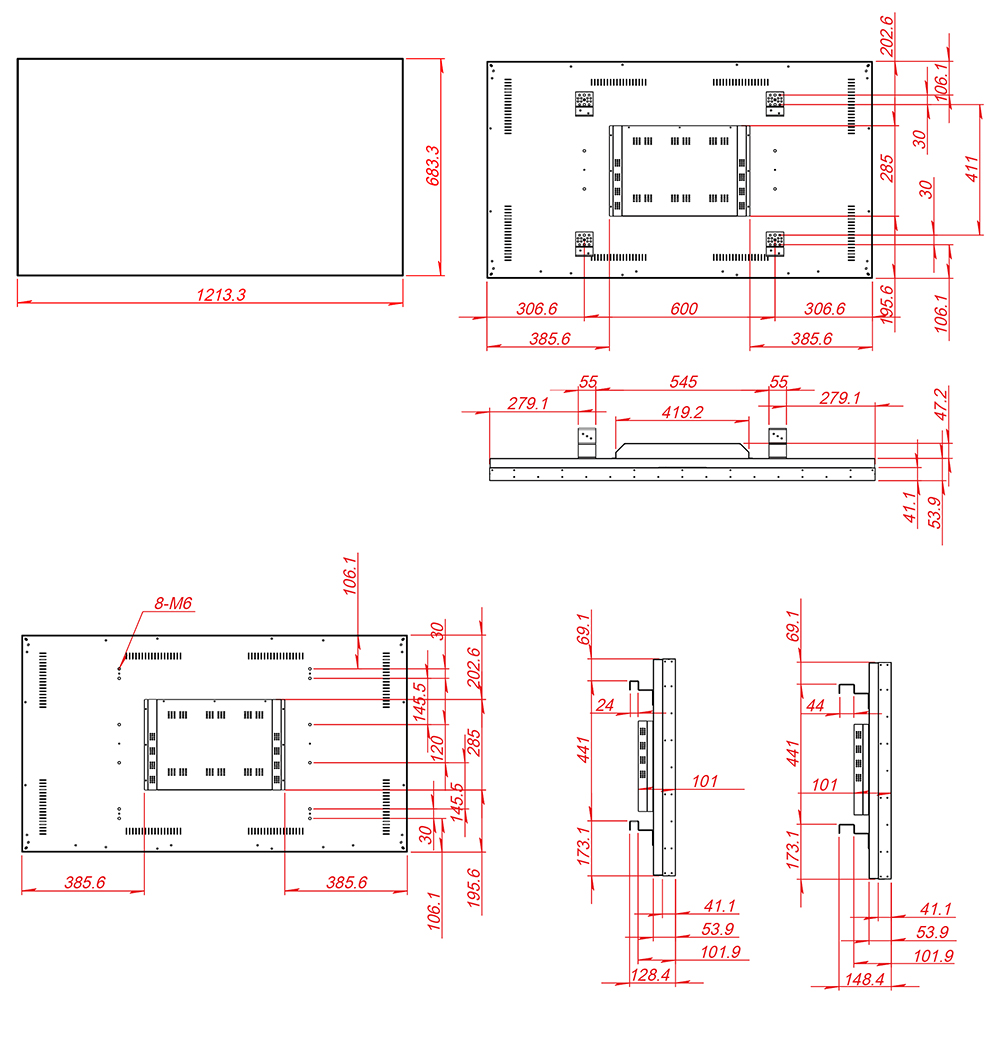

Product size:
