Based on the excellent performance of 2K FHD display panel, unique LED backlight technology is added, and the ultra-thin frame design is matched to maximize the display area, with higher image integrity, wider viewing range, and more perfect visual presentation. The stable metal shell design is sturdy and easy to install, suitable for various purposes, saving installation costs and manpower. It is suitable for shopping malls, hotels, schools, office buildings, conference rooms, stations, airports, high-end communities, hospitals, transportation bureaus and other commercial places, providing commercial-grade splicing solutions.

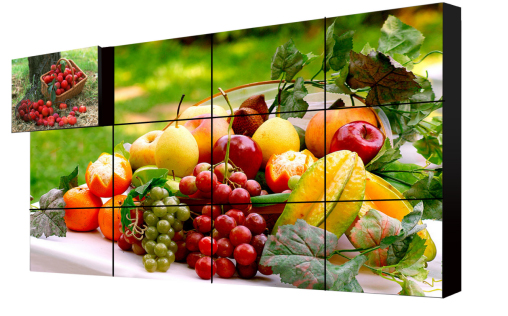

55” 2K FHD ADS

Visuals beyond imagination

Perfect color and contrast from any angle

Commercial grade, efficient and stable

Providing industry-leading display energy efficiency and technology, the ADS panel timely changes the arrangement of liquid crystal molecular particles, and with horizontal conversion technology, the screen responds faster, is more stable, and operates efficiently and stably to meet customers' professional display needs.

Built-in stitching function

Through the display of the spliced screen and the built-in embedded screen position ID, a variety of shocking effects are created

Ultra-thin border design

0.88mm Bezel to Bezel, 2x2 splicing creates an extremely perfect zero-seam visual experience

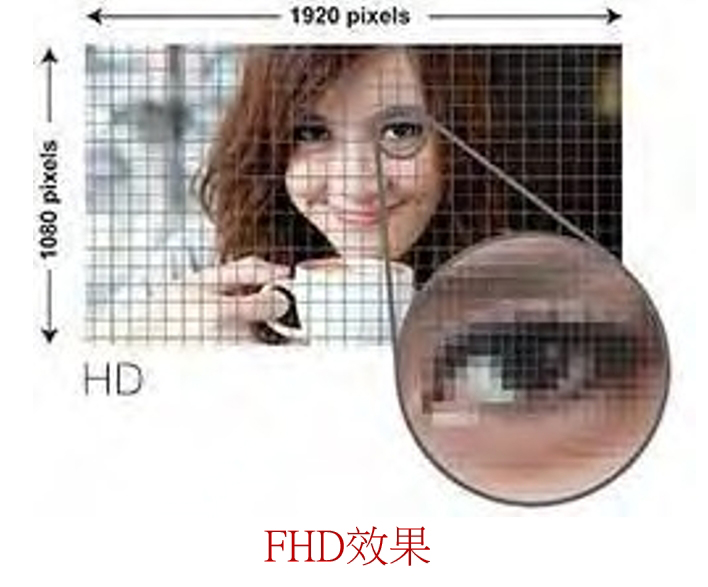

More realistic and clearer image quality

2K FHD full high-definition resolution and unique color optimization function make the color and black purity more realistic and the picture more friendly.

Wider viewing angle

The LCD splicing screen uses advanced image adjustment technology, with a viewing angle of up to 89°. Standing in front of it, the colors are bright and saturated, the picture quality is natural and stable, perfectly consistent, and the wonderful effects are unobstructed!

Better dynamic images

Dynamic images are presented more smoothly, delicately and clearly, solving the problems of image retention and jitter on traditional display screens. It is more suitable for advertising images with ultra-high image quality requirements and better meets the needs of presenting fast-motion images.

Product parameter

Screen parameters	Model	WPS-F5000-0.88mm
	Panel	ADS Panel
	Dimensions	1210.48(H)×681.28(V)
	Physical seams	0.88mm
	Resolution	3840*2160
	Brightness	350cd/m²
	Contrast	3000:1
	Response time	8ms
	Viewing angle	178 degrees
	Color	1.07B
	Color gamut	72%
Backlight source	Light source type	LED
Backlight source	Light source life	50,000 hours

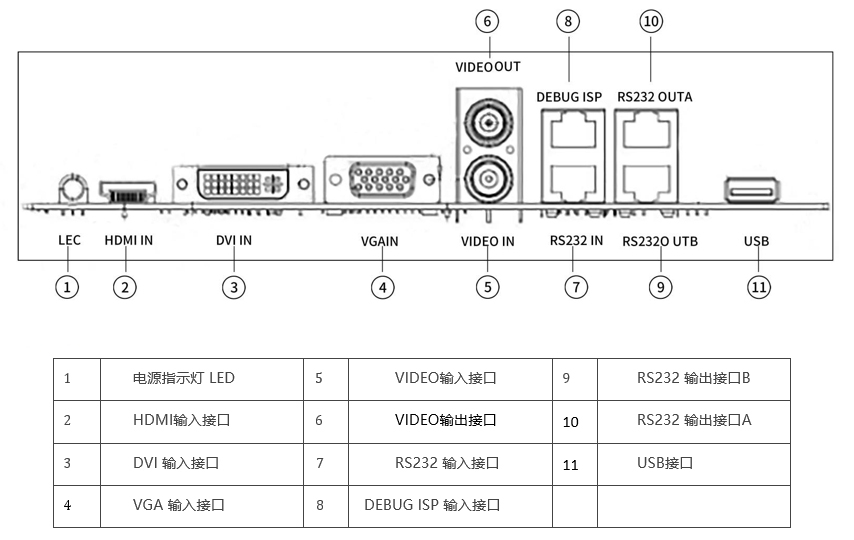

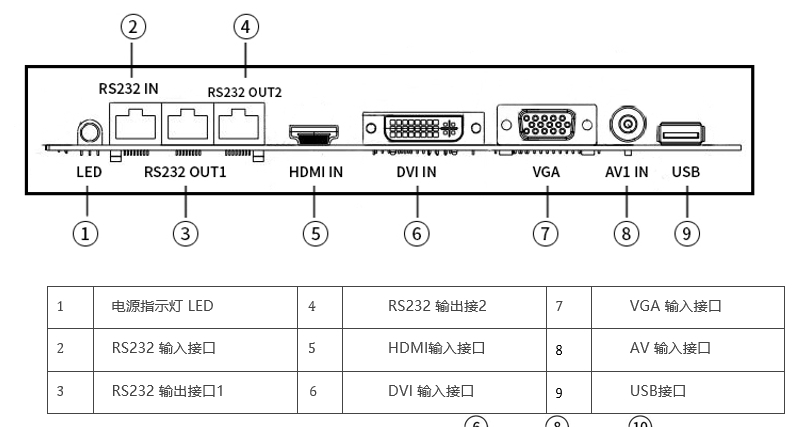

Control interface	Input Control	RJ45（RS232协议）
Control interface	Output Control	RJ45（RS 232协议）
Signal interface	Enter	VGA/DVI/HDMI/VIDEO
Power supply	Operating voltage	100-240V 50/60Hz
Power supply	Rated Power	195W
Work Environment	Operating temperature	0~50℃
Work Environment	Operating humidity	20%~80% non-condensing

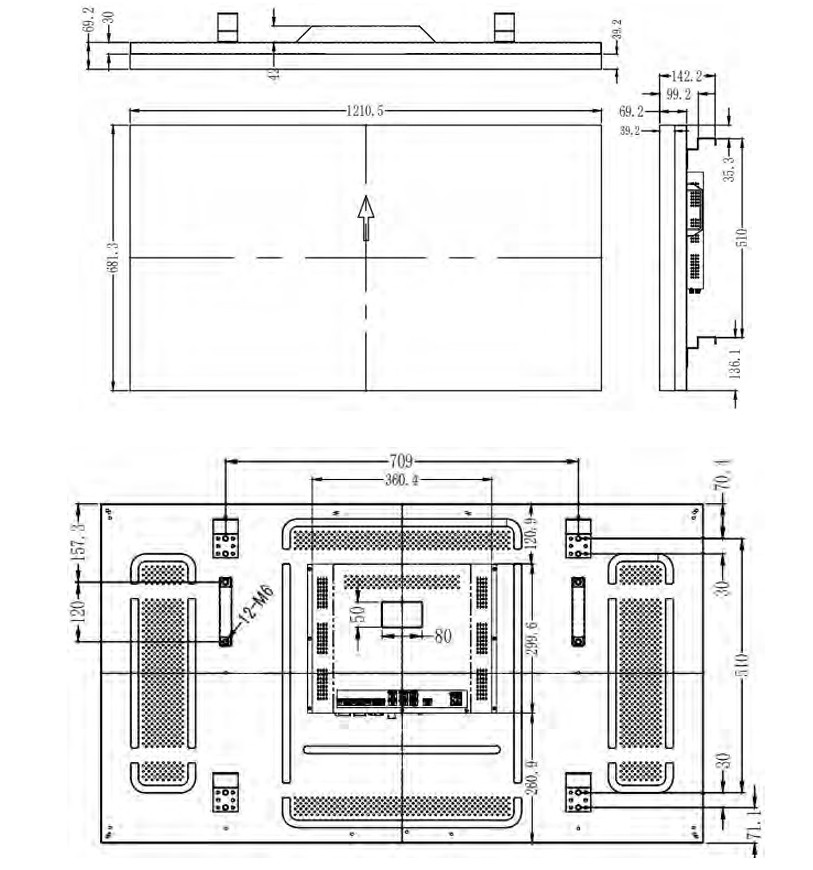

Machine size (mm)		1210.5×681.3×XXmm
Net weight of the whole machine (kg)		24kg
Appendix		Power cord, network cable, hook, hook screw, certificate, warranty card and instruction manual
Packing size (1 piece)		1287×771×201mm
Packing weight (1 piece)		26.75KG
