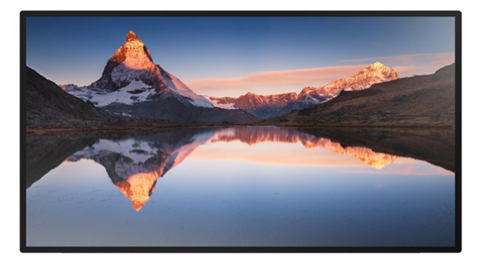

55-inch quadrilateral wall-mounted information release screen non-touch 1+8G 1080P
Product name
Four equilateral sides can be hung horizontally and vertically on a 55-inch information release screen.
Product model
WPS-C5500-L（B）
Specification parameter
1+8G 1080P
Key property
Cloud management, tempering and riot prevention, 24 hours a day, smooth Android9 system.
- Parameters
Product name
Four equilateral sides can be hung horizontally and vertically on a 55-inch information release screen.
Product model
WPS-C5500-L（B）
Specification parameter
1+8G 1080P
Key property
Cloud management, tempering and riot prevention, 24 hours a day, smooth Android9 system.
Product Introduction
55-inch information release screen uses an internationally renowned brand LCD panel with a decoding resolution of 3840*2160 high-definition resolution, low power consumption, and wide viewing angle. The side-entry LED backlight provides more uniform display brightness and a wider color gamut. The industrial-grade design has ultra-high reliability and high stability. The information release screen is a platform for centralized management and control of chain application information release. The system can be centralized, regionalized, and managed by a single terminal to achieve the unification of remote release and management.
Features
- High integration: integrated USB/V-by-one/HDMI/Ethernet/WIFI in one, simplifying the overall design.
- Rich expansion interface: support 100M/10M adaptive Ethernet; 2 USB 2.0 host；; 1 HDMI IN interface, which can meet the requirements of various peripherals in the market.
- High definition: supports up to 3840*2160 decoding.
- Full functions: supports horizontal and vertical screen playback, scrolling subtitles, timer switch, USB data import and other functions.
- Convenient management: humanized playlist background management software for easy management and control. Play log, easy to understand the playback situation.
- ETV information publishing software. Information videos can be published through computer client, IE browser or WeChat applet.
Specifications
| Body parameters | Product color | Black |
| Product Type | Information release screen | |
| Optimal viewing distance (m) | ≥1m | |
| Release Date | 2023 | |
| Energy efficiency rating | First-class energy efficiency | |
Product size | Backlight type | LED edge-lit backlight |
| Screen size ratio | 55 inches, 16:9 | |
| Resolution | 1920*1080 | |
| Brightness | 350cd/m2 | |
| Contrast | 3000:1 | |
| Display Color | 16.7M | |
| Perspective | Full viewing angle 178° | |
| Brightness adjustment | Debuggable | |
| Machine size | Length 1238mm*Height 710mm*Thickness 57mm*Hanging bracket 10mm | |
| Display area | 1095.84(width) × 616.41(height) | |
Motherboard Configuration | CPU | Hisilicon Hi3751 Quad-core 32-bit Cortex-A53 Android 9.0 |
| Running Memory | Memory: 1GB DDR3 | |
| Storage Flash | By default, 8GB EMMC NAND chip comes standard | |
| Video | Supports high definition It has super computing performance, 2D/3D graphics processing capabilities and full HD video encoding and decoding capabilities. HDMI 1.4 standard display interface | |
| trumpet | 8 ohm 10W dual-channel audio amplifier output | |
| Port | 2*USB2.0，1*RJ45，1*HDMI IN | |
Process appearance | Design | Novel and beautiful, reasonable layout, standard wiring. Ergonomic design; |
| Material | Aluminum profile, cold-rolled steel plate, not easy to deform, the cabinet and module components are tightly combined, and the bottom base is fixed with screws and not easy to shake. | |
| Surface treatment | Aluminum edging, tempered glass surface | |
| Aluminum paint sleeve optional | High gloss paint/matte paint/industrial paint, no need to worry about peeling or rusting | |
| Available styles | Rounded apple style and above styles are available. | |
| Power supply | Built-in safe and reliable power supply lead and special socket; | |
| Dimensions and weight | Machine power | ≤150W |
| Appendix | Instruction manual, power cord, | |
| ETV network information publishing software, free | ||
| Package | Length 1315mm*Height 795mm*Thickness 140mm | |
| Weight | 31kg | |
| Wall mount size | Hanging plate fixing plate (400*400mm) | |
Work Environment | Operating temperature | -10～+50℃ |
| Operating humidity | 10～98% | |
| Storage humidity | 10～98% |

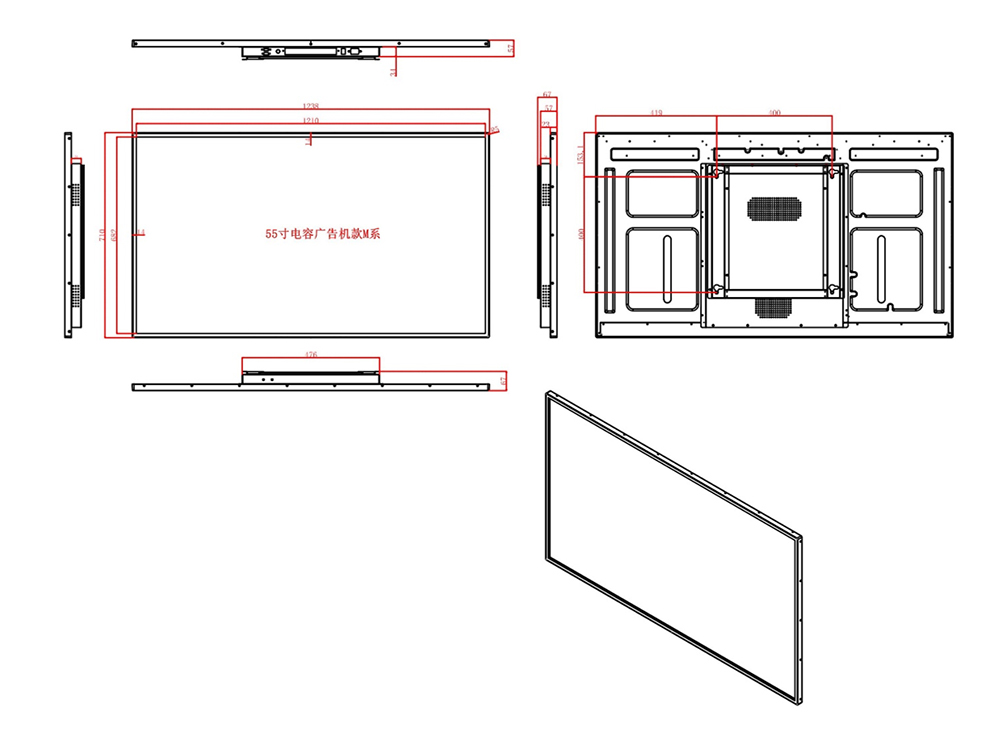

Product size
