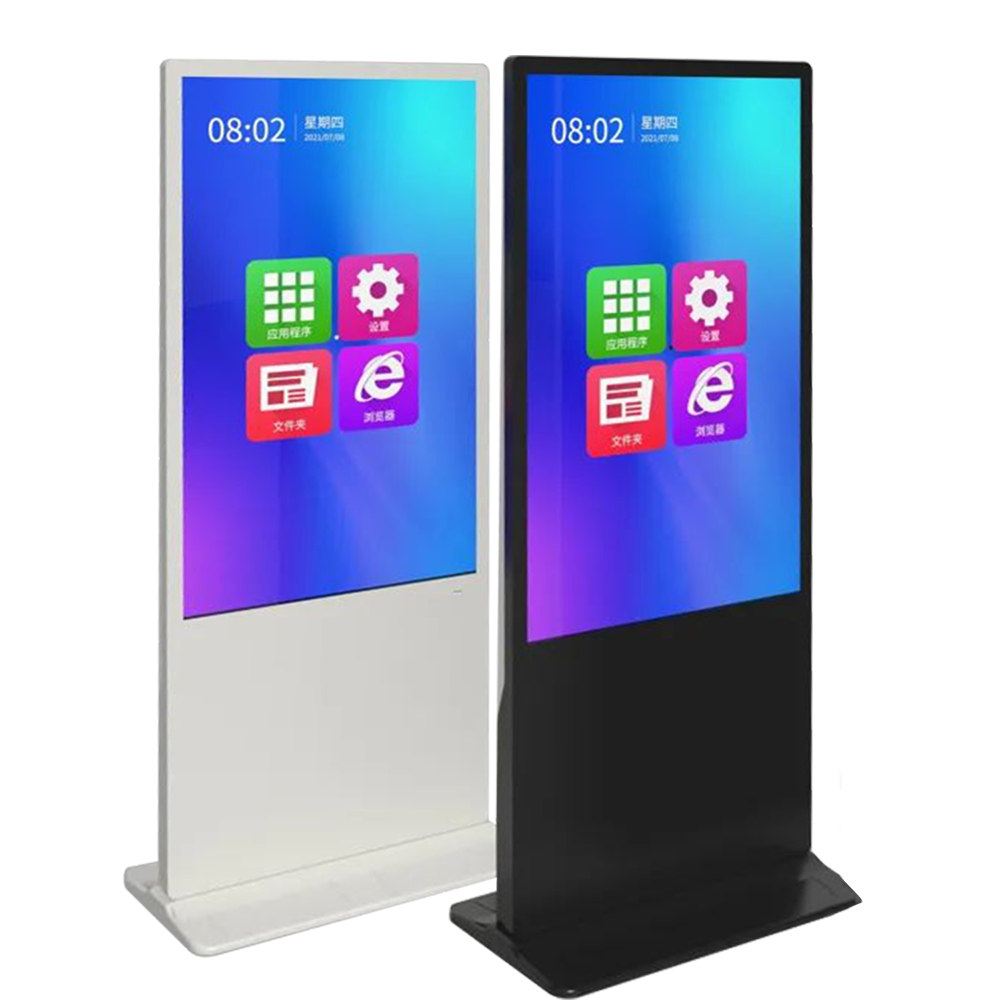

55-inch vertical capacitive touch information release screen 2+16G 4K
Product name
55-inch vertical capacitive touch information release screen
Product model
WPS-C5500-L（AC）
Specifications
2+16G 4K
Main features
Cloud management, tempered anti-riot, 24 hours a day, smooth Android 11 system
- Parameters
Product name
55-inch vertical capacitive touch information release screen
Product model
WPS-C5500-L（AC）
Specifications
2+16G 4K
Main features
Cloud management, tempered anti-riot, 24 hours a day, smooth Android 11 system
Product introduction
55-inch vertical information release screen adopts an internationally renowned brand LCD panel, with a decoding resolution of high-definition 2160*3840 resolution, low power consumption, and wide viewing angle. The side-entry LED backlight source provides more uniform display brightness and a wider color gamut. The industrial-grade design has ultra-high reliability and high stability. The information release screen is a platform for centralized management and control of chain application information release. The system can be centralized, regionalized, and managed by a single terminal to achieve the unification of remote release and management.
Functional characteristics
- 10-point high-precision capacitive touch
- High integration: integrating USB/V-by-one/HDMI/ Ethernet /WIFI to simplify the design of the whole machine.
- Rich expansion interface: support 100M/10M adaptive Ethernet; 1 USB 3.0 host；; One USB2.0-OTG, one HDMI IN, one TF card and one headphone jack can meet the requirements of various peripherals in the market.
- High definition: maximum support for 2160*3840 decoding.
- Full-featured: support for horizontal and vertical screen playback, scrolling subtitles, timing switch, USB data import and other functions.
- Convenient management: humanized playlist background management software is convenient for management and control. Play the log, which is convenient to understand the playback situation.
- ETV information publishing software. You can publish information videos through computer client, IE browser or WeChat applet.
Specification parameter
| Subject parameter | Product color | Black |
| Product color | Vertical information release screen | |
| Optimum viewing distance (m) | ≥1m | |
| Listing date | 2023年 | |
| Energy efficiency index | First-class energy efficiency | |
| Product size | Backlight type | LED edge-lit backlight |
| Screen size ratio | 55 inches, 9:16 | |
| Screen parameters | Touch mode | 10-point high-precision capacitive touch |
| Resolution | 3840*2160 | |
| Brightness | 350cd/m² | |
| Contrast | 3000:1 | |
| Display Color | 1.07B(10bit) | |
| Perspective | Full viewing angle 178° | |
| Brightness adjustment | Debuggable | |
| Display area | 680.4mm(W)×1209.6mm(H) | |
| Motherboard Configuration | CPU | T982 Android 11 Quad-core Cortex-A55, up to 1.92GHz |
| Running Memory | Memory: 2GB DDR3 | |
| Storage Flash | Default 16GB EMMC NAND chip | |
| Video | Supports high definition It has powerful computing performance, 2D/3D graphics processing capabilities and full HD video encoding and decoding capabilities. HDMI 1.4 standard display interface | |
| Trumpet | 8 ohm 10W dual-channel audio amplifier output | |
| Port | 1*USB2.0-OTG, 1*USB3.0-HOST, 1*RJ45, 1*HDMI IN, TF card, earphone | |
Process appearance | Design | Novel and beautiful, reasonable layout, standard wiring. Ergonomic design; |
| Material | Aluminum profile, cold-rolled steel plate, not easy to deform, the cabinet and module components are tightly combined, and the bottom base is fixed with screws and not easy to shake. | |
| Surface treatment | Aluminum edging, tempered glass surface | |
| Aluminum paint sleeve optional | High gloss paint/matte paint/industrial paint, no need to worry about peeling or rusting | |
| Available styles | Rounded apple style and above styles are available. | |
| Power supply | Built-in safe and reliable power supply lead and special socket; | |
| Dimensions and weight | Machine power | ≤155W |
| Appendix | Instruction manual, power cord | |
| Network information publishing software (distribution) | ||
| Machine size | 748.2*1914.7*30.6mm | |
| Packing size | 1968*860*160mm | |
| Weight | 46.6kg | |
| Gross Weight | 53.9kg | |
| Base size | 700*450mm | |
| Work Environment | Operating temperature | -10～+50℃ |
| Operating humidity | 10～98% | |
| Storage humidity | 10～98% |
Product size
