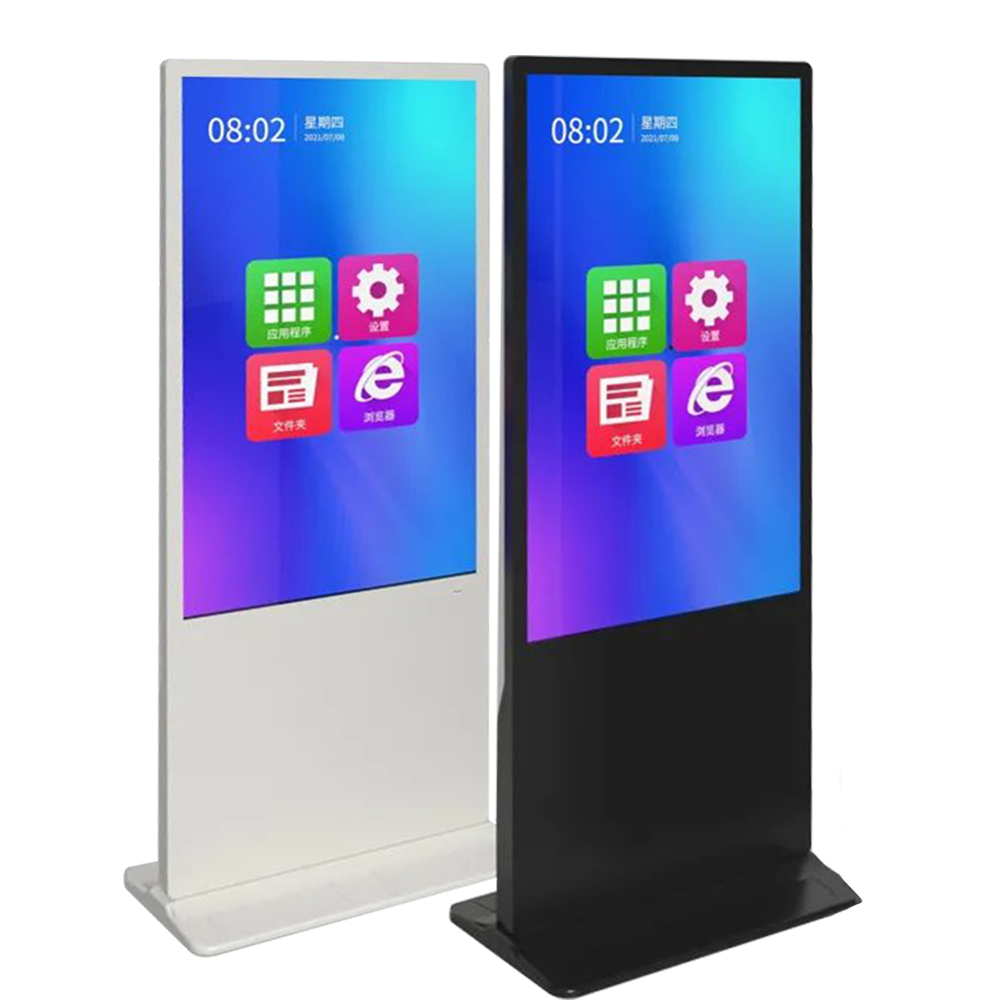

55-inch vertical non-touch information release screen 1+8G 1080P
Product name
Vertical 55-inch information display screen
Product model
PFT-F55E (A)
Specifications
1+8G 1080P
Main features
Cloud management, tempered glass, 24-hour operation, smooth Android 9 system
- Parameters
Product name
Vertical 55-inch information display screen
Product model
PFT-F55E (A)
Specifications
1+8G 1080P
Main features
Cloud management, tempered glass, 24-hour operation, smooth Android 9 system
Product introduction
55-inch vertical information release screen adopts an internationally renowned brand LCD panel, with a decoding resolution of high-definition 1080*1920 resolution, low power consumption, and wide viewing angle. The side-entry LED backlight source provides more uniform display brightness and a wider color gamut. The industrial-grade design has ultra-high reliability and high stability. The information release screen is a platform for centralized management and control of chain application information release. The system can be centralized, regionalized, and managed by a single terminal to achieve the unification of remote release and management.
Functional characteristics
- High integration: Integrates USB/LVDS//HDMI/Ethernet/WIFI in one, simplifying the overall design.
- Rich expansion interfaces: supports 100M/10M adaptive Ethernet; 2 USB 2.0 hosts; 1 HDMI IN interface, which can meet the requirements of various peripherals on the market.
- High definition: supports up to 1080*1920 decoding.
- Full functions: supports horizontal and vertical screen playback, scrolling subtitles, timer switch, USB data import and other functions.
- Convenient management: Humanized playlist background management software for easy management and control. Play log, easy to understand the playback situation.
- ETV information publishing software. Information videos can be published through computer client, IE browser or WeChat applet.
Specification parameter
| Subject parameter | Product color | Black |
| Product color | Vertical information release screen | |
| Optimum viewing distance (m) | ≥1m | |
| Listing date | 2023年 | |
| Energy efficiency index | First-class energy efficiency | |
| Product size | Backlight type | LED edge-lit backlight |
| Screen size ratio | 55 inches, 9:16 | |
| Screen parameters | Resolution | 1080*1920 |
| Brightness | 350cd/m² | |
| Contrast | 3000:1 | |
| Display Color | 16.7M | |
| Perspective | Full viewing angle 178° | |
| Brightness adjustment | Debuggable | |
| Display area | 680.4mm(W)×1209.6mm(H) | |
| Motherboard Configuration | CPU | HiSilicon Hi3751 quad-core 32-bit Cortex-A53 Android 9.0 |
| Running Memory | Memory: 1GB DDR3 | |
| Storage Flash | Default standard 8GB EMMC NAND chip | |
| Video | Supports high definition It has powerful computing performance, 2D/3D graphics processing capabilities and full HD video encoding and decoding capabilities. HDMI 1.4 standard display interface | |
| Trumpet | 8 ohm 10W dual-channel audio amplifier output | |
| Port | 2*USB2.0，1*RJ45，1*HDMI IN | |
Process appearance | Design | Novel and beautiful, reasonable layout, standard wiring. Ergonomic design; |
| Material | Aluminum profile, cold-rolled steel plate, not easy to deform, the cabinet and module components are tightly combined, and the bottom base is fixed with screws and not easy to shake. | |
| Surface treatment | Aluminum edging, tempered glass surface | |
| Aluminum paint sleeve optional | High gloss paint/matte paint/industrial paint, no need to worry about peeling or rusting | |
| Available styles | Rounded apple style and above styles are available. | |
| Power supply | Built-in safe and reliable power supply lead and special socket; | |
| Dimensions and weight | Machine power | ≤155W |
| Appendix | Instruction manual, power cord | |
| Network information publishing software (distribution) | ||
| Machine size | 748.2*1914.7*30.6mm | |
| Packing size | 1968*860*160mm | |
| Weight | 46.6kg | |
| Gross Weight | 53.9kg | |
| Base size | 700*450mm | |
| Work Environment | Operating temperature | -10～+50℃ |
| Operating humidity | 10～98% | |
| Storage humidity | 10～98% |
Product size
