65-inch 4K vandal-proof touch all-in-one computer with 1300W camera 2+32G
Product name
65-inch 4K riot-proof touch all-in-one computer
Product model
PFT-F65EX
Product configuration
2+32G with 1300W camera
Main features
Business oxidized black appearance, slim ultra-narrow edge design, high-precision infrared, touch, smart pen writing, smooth Android11.0 system
- Parameters
Product name
65-inch 4K riot-proof touch all-in-one computer
Product model
PFT-F65EX
Product configuration
2+32G with 1300W camera
Main features
Business oxidized black appearance, slim ultra-narrow edge design, high-precision infrared, touch, smart pen writing, smooth Android11.0 system
Product Introduction
65-inch interactive flat panel, using internationally renowned brand LCD panel, ultra-high-definition 3840*2160 resolution, low power consumption, wide viewing angle. Direct-type LED backlight, more uniform display brightness, wider color gamut. Industrial-grade design, with ultra-high reliability and high stability. Touch technology uses high-precision infrared touch frame, and the resolution can be as high as 32767*32767 through interpolation algorithm.
Features
1. Ultra-thin aluminum front frame (thickness 28.26mm), surface sprayed with fine sand and anodized, zinc alloy plated corner code, sheet metal back cover, the whole machine is super metallic and actively dissipates heat;
2. Anti-glare tempered glass is standard, which protects the LCD glass and enhances the visual effect, protecting the viewing vision and improving the touch experience;
3. Standard high-precision infrared touch bar:
(1) touch accuracy < 1 mm;
(2) Support two 2mm pen-tip books to be written at the same time;
③ Support 5 3mm pen tips to write at the same time;
(4) Support multiple people to write small characters within 1cm high;
⑤ The recognition accuracy of two-color pen is 100%; (Need the support of Android whiteboard software)
⑥ The pen height is less than 1 mm, and writing foreign characters is not Lian Bi (meeting the standards of UNESCO supplier Promethean);
4. The structure is designed according to the low touch zero sticker, which makes the touch writing experience super strong;
5. Operating system: dual-system free switching, Android 11.0 version and windows10 version;
6. The sound of the loudspeaker is pre-positioned to prevent the sound effect from deteriorating due to the embedded environment;
7. Use the OPS slot of international common standard, with integrated plug-in design, which is convenient for upgrading and maintenance, and there is no visible connecting wire of computer module outside, so the body is beautiful;
8. Support gesture side pull menu, which can quickly adjust brightness sound and switch signal sources;
9. Direct-type module backlight is mature, stable and durable;
10. Support WIFI wireless connection and wired network connection;
11. The system comes with functions such as screen projection, electronic whiteboard and annotation;
12. Front expansion ports: 1 PC-USB, 1 full channel -USB, 1 HDMI input, 1 Type-C and 1 TOUCHUSB are convenient for users to use external devices;
13. Support multi-touch screen. When the PC motherboard is used as a dual-system integrated machine, the touch box can be seamlessly switched between dual systems (windows/Android);
14. Android 11.0 system support, multi-theme system can be switched at any time, and startup LOGO can be customized.
15. Support Android and computer handwriting annotation function of any picture, and support real-life annotation and panoramic writing annotation function. Support gesture to pull the navigation bar sideways, and call out common function shortcut keys with one key;
Parameters
| Panel parameters | Size | 65” |
| Camera | Built-in 1300W camera + array microphone | |
| Backlight type | D-LED | |
| Resolution | 3840×2160 | |
| Display size (mm) | 1428.48（H）× 803.52（V） | |
| Pixel pitch (mm) | 0.315(H) x 0.315(V) | |
| Response time | 8ms (typ.) | |
| Brightness | 300nit | |
| Contrast | Minimum 800, typical 1200 | |
| Viewing Angle | 178° (vertical, horizontal) | |
| color | 1.07B | |
| Color saturation (sRGB) | 99% | |
| Display Scale | 16:9 | |
| Refresh rate | 60Hz | |
| Touch parameters | Touch specifications | Infrared touch frame |
| Glass specifications | 3mm tempered glass | |
| Touch points | 20点 | |
| Response time | <8ms | |
| Touch accuracy | More than 90% of the touch area is ±1 mm | |
| Output format | HID Standard | |
| Theoretical clicks | Unlimited | |
| Touch diameter | Single point 2.5mm | |
| System Parameters | Plan | MTK9630 |
| CPU | CORTEX Quad-core A53*2+A73*2 Quad-core 1.5HZ | |
| Memory | 2G | |
| Storage | 32GB | |
| System version | Android 11.0 | |
| Signal interface | MIC input port | *1 (3 in 1 port) |
| VGA input interface | *1 | |
| Audio Input Interface | *1 | |
| HDMI input interface | *3 | |
| USB 2.0 | *2 | |
| Output Interface | Earphone OUT | *1 (3 in 1) port |
| Other interfaces | TOUCH-USB | *1 |
| RS232 | *1 | |
| Network | RJ45 input interface | *1 |
| WiFi | 2.4G WiFi + 5G screen projection hotspot | |
| Structural dimensions | Net weight | 32KG |
| Gross Weight | 38KG | |
| Bare metal dimensions | 1485×900.11×88.3mm | |
| Packing size | 1620（L）*200（W）*1070（H） (integrated box) | |
| Housing Material | Aluminum profile/sheet metal | |
| Power consumption | Power input voltage | 100 V ~ 240 V/AC，50/60 Hz |
| Machine power | ≤115W (excluding OPS), supporting OPS power ≤80W | |
| Standby power | <0.5W | |
| Speaker specifications | Stereo sound, 2*10W (±15%) high and low bass speakers | |
| Work Environment | Operating temperature | -10℃～50℃ |
| Operating humidity | 20%～85% RH Non-Condensing | |
| Storage temperature | -10℃～60℃ | |
| Storage humidity | 10%～90% RH Non-Condensing | |
| Appendix | Power cord | 1 piece (1.5m) |
| Manual | 1 | |
| Remote control (with batteries) | 1 | |
| Wall mount | 1 | |
| Touch pen | 1 | |
| HDMI cable | 1(1.5m) |

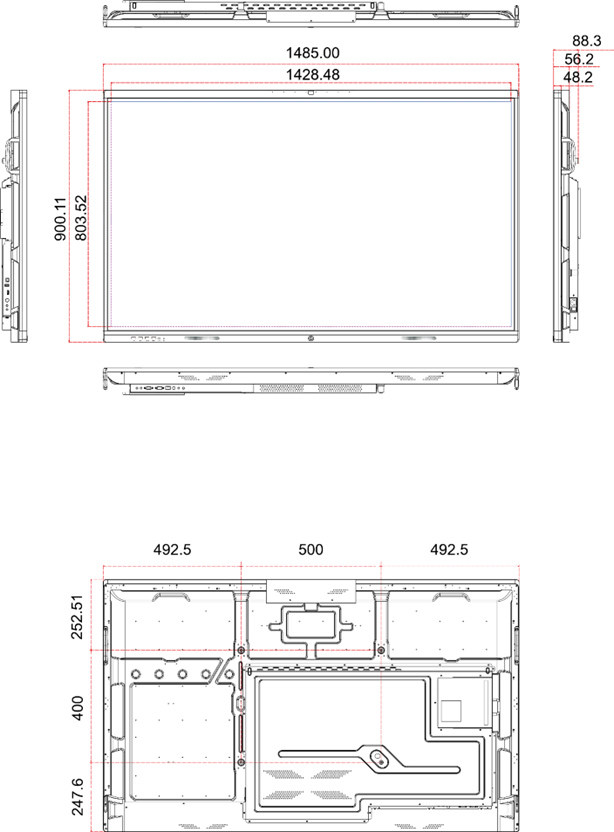

Product size
