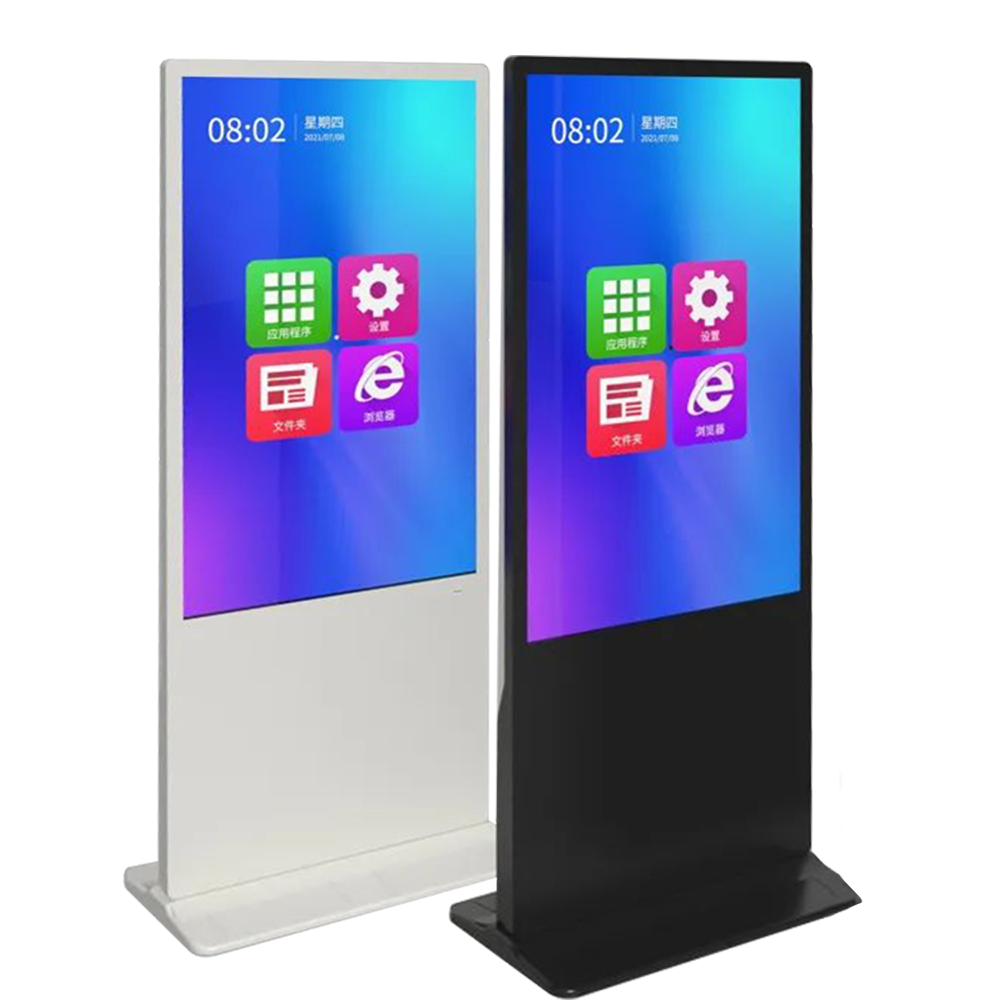

65-inch vertical non-touch information release screen 2+16G 4K
Product name
Vertical 65-inch information release screen
Product model
PFT-F65E (A)
Specifications
2+16G 4K
Main features
Cloud management, tempered glass, 24-hour operation, smooth Android 11 system
- Parameters
Product name
Vertical 65-inch information release screen
Product model
PFT-F65E (A)
Specifications
2+16G 4K
Main features
Cloud management, tempered glass, 24-hour operation, smooth Android 11 system
Product introduction
65-inch information release screen, using internationally renowned brand LCD panel, decoding resolution of HD 2160*3840, low power consumption and wide viewing angle. Stand-down LED backlight has more uniform display brightness and wider color gamut. Industrial design, with super high reliability and high stability. Information release screen is a platform for centralized management and control of information release for chain applications. The system can be centralized, regionalized and managed by single terminal, realizing the unification of remote publishing and management.
Functional characteristics
- High integration: integrating USB/V-by-one/HDMI/ Ethernet /WIFI to simplify the design of the whole machine.
- Rich expansion interface: support 100M/10M adaptive Ethernet; 1 USB 3.0 host；; One USB2.0-OTG, one HDMI IN, one TF card and one headphone jack can meet the requirements of various peripherals in the market.
- High definition: maximum support for 2160*3840 decoding.
- Full-featured: support for horizontal and vertical screen playback, scrolling subtitles, timing switch, USB data import and other functions.
- Convenient management: humanized playlist background management software is convenient for management and control. Play the log, which is convenient to understand the playback situation.
- ETV information publishing software. You can publish information videos through computer client, IE browser or WeChat applet.
Specification parameter
| Subject parameter | Product color | Black |
| Product color | Vertical information release screen | |
| Optimum viewing distance (m) | ≥1m | |
| Listing date | 2023年 | |
| Energy efficiency index | First-class energy efficiency | |
| Product size | Backlight type | LED vertical backlight |
| Screen size ratio | 65 inches, 9:16 | |
| Screen parameters | Resolution | 2160*3840 |
| Brightness | 350cd/m² | |
| Contrast | 3000:1 | |
| Display Color | 1.07B(bit) | |
| Perspective | Full viewing angle 178° | |
| Brightness adjustment | Debuggable | |
| Display area | 803.52mm(W)×1428.48mm(H) | |
| Motherboard Configuration | CPU | T982 Android 11 Quad-core Cortex-A55, up to 1.92GHz |
| Running Memory | Memory: 2GB DDR3 | |
| Storage Flash | Default 16GB EMMC NAND chip | |
| Video | Supports high definition It has powerful computing performance, 2D/3D graphics processing capabilities and full HD video encoding and decoding capabilities. HDMI 1.4 standard display interface | |
| Trumpet | 8 ohm 10W dual-channel audio amplifier output | |
| Port | 1*USB2.0-OTG, 1*USB3.0-HOST, 1*RJ45, 1*HDMI IN, TF card, earphone | |
Process appearance | Design | Novel and beautiful, reasonable layout, standard wiring. Ergonomic design; |
| Material | Aluminum profile, cold-rolled steel plate, not easy to deform, the cabinet and module components are tightly combined, and the bottom base is fixed with screws and not easy to shake. | |
| Surface treatment | Aluminum edging, tempered glass surface | |
| Aluminum paint sleeve optional | High gloss paint/matte paint/industrial paint, no need to worry about peeling or rusting | |
| Available styles | Rounded apple style and above styles are available. | |
| Power supply | Built-in safe and reliable power supply lead and special socket; | |
| Dimensions and weight | Machine power | ≤155W |
| Appendix | Instruction manual, power cord | |
| Network information publishing software (distribution) | ||
| Machine size | 895.4*2065.5*28.6mm | |
| Packing size | 1010*2130*190mm | |
| Weight | 64.7kg | |
| Gross Weight | 75.3kg | |
| Base size | 897*450mm | |
| Work Environment | Operating temperature | -10～+50℃ |
| Operating humidity | 10～98% | |
| Storage humidity | 10～98% |
Product size
