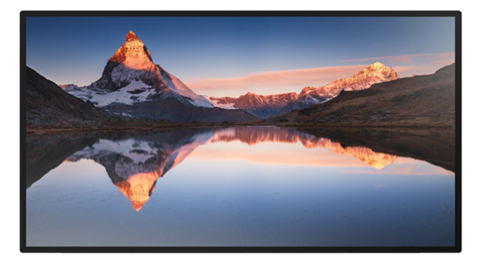

75-inch quadrilateral wall-mounted information release screen non-touch 1+8G 1080P
Product name
Four equal sides can be hung horizontally and vertically on 75-inch information release screen.
Product model
PFT-F75E（B）
Specification parameter
1+8G 1080P
Key property
Cloud management, tempering and riot prevention, 24 hours a day, smooth Android9 system.
- Parameters
Product name
Four equal sides can be hung horizontally and vertically on 75-inch information release screen.
Product model
PFT-F75E（B）
Specification parameter
1+8G 1080P
Key property
Cloud management, tempering and riot prevention, 24 hours a day, smooth Android9 system.
Product Introduction
75-inch information release screen, using internationally renowned brand LCD panel, decoding resolution of HD 1920*1080, low power consumption and wide viewing angle. Side-entry LED backlight has more uniform display brightness and wider color gamut. Industrial design, with super high reliability and high stability. Information release screen is a platform for centralized management and control of information release for chain applications. The system can be centralized, regionalized and managed by single terminal, realizing the unification of remote publishing and management.
Features
- High integration: Integrates USB/LVDS/HDMI/Ethernet/WIFI in one, simplifying the overall design.
- Rich expansion interface: support 100M/10M adaptive Ethernet; 2 USB 2.0 host；; 1 HDMI IN interface, which can meet the requirements of various peripherals in the market.
- High definition: supports up to 1920*1080 decoding.
- Full functions: supports horizontal and vertical screen playback, scrolling subtitles, timer switch, USB data import and other functions.
- Convenient management: Humanized playlist background management software for easy management and control. Play log, easy to understand the playback situation.
- ETV information publishing software. Information videos can be published through computer client, IE browser or WeChat applet.
Specifications
| Body parameters | Product color | Black |
| Product Type | Information release screen | |
| Optimal viewing distance (m) | ≥1m | |
| Release Date | 2023 | |
| Energy efficiency rating | First-class energy efficiency | |
Product size | Backlight type | LED vertical backlight |
| Screen size ratio | 75 inches, 16:9 | |
| Screen parameters | Resolution | 3840*2160 |
| Brightness | 350cd/m2 | |
| Contrast | 3000:1 | |
| Display Color | 1.07B(10bit) | |
| Perspective | Full viewing angle 178° | |
| Brightness adjustment | Debuggable | |
| Machine size | Length 1716.4mm*Height 1000.5mm*Thickness 55.7mm | |
| Display area | 1649.664mm(width)×927.936mm(height) | |
Motherboard Configuration | CPU | Hisilicon Hi3751 Quad-core 32-bit Cortex-A53 Android 9.0 |
| Running Memory | Memory: 1GB DDR3 | |
| Storage Flash | By default, 8GB EMMC NAND chip comes standard. | |
| Video | Supports high definition It has super computing performance, 2D/3D graphics processing capabilities and full HD video encoding and decoding capabilities. HDMI 1.4 standard display interface | |
| trumpet | 8 ohm 10W dual-channel audio amplifier output | |
| Port | 2*USB2.0，1*RJ45，1*HDMI IN | |
Process appearance | Design | Novel and beautiful, reasonable layout, standard wiring. Ergonomic design; |
| Material | Aluminum profile, cold-rolled steel plate, not easy to deform, the cabinet and module components are tightly combined, and the bottom base is fixed with screws and not easy to shake. | |
| Surface treatment | Aluminum edging, tempered glass surface | |
| Aluminum paint sleeve optional | High gloss paint/matte paint/industrial paint, no need to worry about peeling or rusting | |
| Available styles | Rounded apple style and above styles are available. | |
| Power supply | Built-in safe and reliable power supply lead and special socket; | |
| Dimensions and weight | Machine power | ≤195W |
| Appendix | Instruction manual, power cord, | |
| ETV network information publishing software, free | ||
| Package | Length 1850mm*Height 1125mm*Thickness 185mm | |
| Weight | 52kg | |
| Wall mount size | Hanging plate fixing plate (642*460mm) | |
Work Environment | Operating temperature | -10～+50℃ |
| Operating humidity | 10～98% | |
| Storage humidity | 10～98% |
Product size
