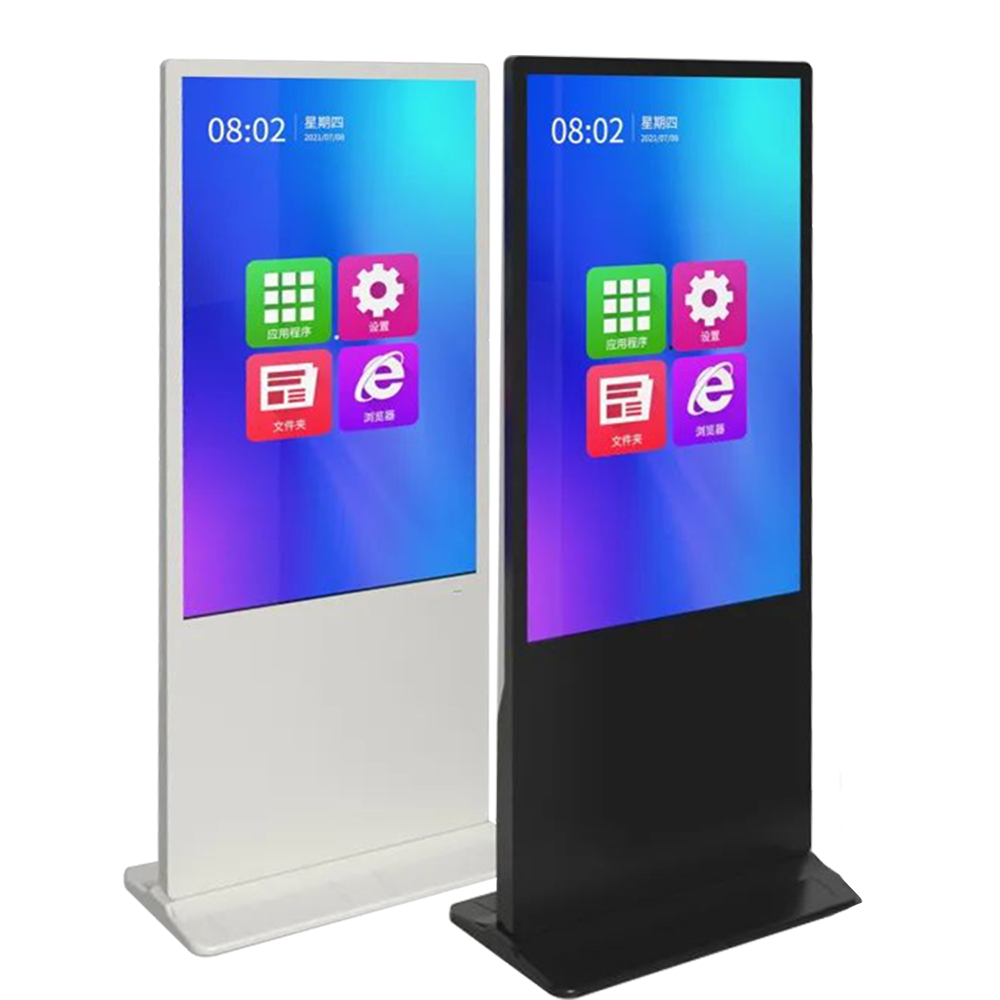

75-inch vertical non-touch information release screen 2+16G 4K
Product name
Vertical 75-inch information release screen
Product model
WPS-C7500-L（A）
Specifications
2+16G 4K
Main features
Cloud management, tempered glass, 24-hour operation, smooth Android 11 system
- Parameters
Product name
Vertical 75-inch information release screen
Product model
WPS-C7500-L（A）
Specifications
2+16G 4K
Main features
Cloud management, tempered glass, 24-hour operation, smooth Android 11 system
Product introduction
86-inch information release screen uses an internationally renowned brand LCD panel with a decoding resolution of 2160*3840 high-definition resolution, low power consumption, and wide viewing angle. Direct-type LED backlight, more uniform display brightness, wider color gamut. Industrial-grade design, with ultra-high reliability and high stability. The information release screen is a platform for centralized management and control of chain application information release. The system can be centralized, regionalized, and managed by a single terminal to achieve the unification of remote release and management.
Functional characteristics
- High integration: Integrates USB/V-by-one/HDMI/Ethernet/WIFI in one, simplifying the overall design.
- Rich expansion interfaces: support 100M/10M adaptive Ethernet; 1 USB 3.0 host; 1 USB2.0-OTG, 1 HDMI IN, 1 TF card, 1 headphone interface, which can meet the requirements of various peripherals on the market.
- High definition: supports up to 2160*3840 decoding.
- Full functions: support horizontal and vertical screen playback, scrolling subtitles, timer switch, USB data import and other functions.
- Convenient management: Humanized playlist background management software for easy management and control. Play log, easy to understand the playback situation.
- ETV information publishing software. Information videos can be published through computer client, IE browser or WeChat applet.
Specification parameter
| Subject parameter | Product color | Black |
| Product color | Vertical information release screen | |
| Optimum viewing distance (m) | ≥1m | |
| Listing date | 2023年 | |
| Energy efficiency index | First-class energy efficiency | |
| Product size | Backlight type | LED direct backlight |
| Screen size ratio | 75 inches, 9:16 | |
| Screen parameters | Resolution | 2160*3840 |
| Brightness | 350cd/m² | |
| Contrast | 3000:1 | |
| Display Color | 1.07B(10bit) | |
| Perspective | Full viewing angle 178° | |
| Brightness adjustment | Debuggable | |
| Display area | 927.936mm(W)×1649.664mm(H) | |
| Motherboard Configuration | CPU | T982 Android 11 Quad-core Cortex-A55, up to 1.92GHz |
| Running Memory | Memory: 2GB DDR3 | |
| Storage Flash | Default 16GB EMMC NAND chip | |
| Video | Supports high definition It has powerful computing performance, 2D/3D graphics processing capabilities and full HD video encoding and decoding capabilities. HDMI 1.4 standard display interface | |
| Trumpet | 8 ohm 10W dual-channel audio amplifier output | |
| Port | 1*USB2.0-OTG, 1*USB3.0-HOST, 1*RJ45, 1*HDMI IN, TF card, earphone | |
Process appearance | Design | Novel and beautiful, reasonable layout, standard wiring. Ergonomic design; |
| Material | Aluminum profile, cold-rolled steel plate, not easy to deform, the cabinet and module components are tightly combined, and the bottom base is fixed with screws and not easy to shake. | |
| Surface treatment | Aluminum edging, tempered glass surface | |
| Aluminum paint sleeve optional | High gloss paint/matte paint/industrial paint, no need to worry about peeling or rusting | |
| Available styles | Rounded apple style and above styles are available. | |
| Power supply | Built-in safe and reliable power supply lead and special socket; | |
| Dimensions and weight | Machine power | ≤195W |
| Appendix | Instruction manual, power cord | |
| Network information publishing software (distribution) | ||
| Machine size | 1033.6*2245*106mm | |
| Packing size | 1145*2315*240mm | |
| Weight | 87.5kg | |
| Gross Weight | 111kg | |
| Base size | 1033.6*560mm | |
| Work Environment | Operating temperature | -10～+50℃ |
| Operating humidity | 10～98% | |
| Storage humidity | 10～98% |
Product size
