86-inch 4K vandal-proof touch all-in-one computer with 1300W camera 4+32G
Product name
86-inch 4K riot-proof touch all-in-one computer
Product model
PFT-F86EX
Product configuration
4+32G with 1300W camera
Main features
Business oxidized black appearance, slim ultra-narrow edge design, high-precision infrared, touch, smart pen writing, smooth Android11.0 system
- Parameters
Product name
86-inch 4K riot-proof touch all-in-one computer
Product model
PFT-F86EX
Product configuration
4+32G with 1300W camera
Main features
Business oxidized black appearance, slim ultra-narrow edge design, high-precision infrared, touch, smart pen writing, smooth Android11.0 system
Product Introduction
86-inch interactive flat panel, black aluminum profile appearance, using internationally renowned brand LCD panel, ultra-high-definition 3840*2160 resolution, low power consumption, wide viewing angle. Direct-type LED backlight, more uniform display brightness, wider color gamut. Industrial-grade design, with ultra-high reliability and high stability. Touch technology uses high-precision infrared touch frame, and the resolution can be as high as 32767*32767 through interpolation algorithm.
Features
• Adopting professional hard screen technology, with large viewing angle, fast response speed, high color reproduction, and no water ripple deformation when pressed by hand;
• High contrast, brighter picture display, more outstanding color performance;
• Adopting direct-down LED backlight mode, more uniform brightness performance;
• The viewing angle can reach 178°, close to the horizontal;
• Industrial-grade design, high reliability, high stability, low power consumption, lifespan up to 30,000 hours
• Support 20-point touch
• Support multiple image signal inputs (HDMI, VGA, AV);
• Support OSD full touch menu;
• Support USB multimedia playback function: picture display, movie playback, music playback, text playback function.
• Android system functions:
1. Android 11.0 embedded system;
2. Support 20-point touch writing experience to meet the needs of different users;
3. Android whiteboard intelligent thick and thin pen writing, with built-in pen tip, restore writing handwriting;
4. Scan the QR code during the meeting to easily take away the meeting minutes, making data sharing more convenient;
5. Support continuous annotation under any channel;
6. Support custom replacement of static wallpaper;
7. Support device timed sleep standby, energy saving and consumption reduction;
8. Support custom no signal standby time;
9. Support five-finger screen off, three-finger follow;
10. Support sidebar shortcut keys to automatically hide without operation;
11. Intelligently identify the signal source, automatically jump into the port channel when connecting to the external signal;
12. Support three major system theme style switching, namely conference theme, education theme, and classic theme;
13. The floating icon supports 6 shortcut function menus: return, whiteboard, OPS computer, annotation, taskbar, and Android homepage;
14. Supports clicking the left and right sidebars in any channel to expand the function menu, including return to the previous page, return to the home page, system settings, file management, signal source list (channel switching), control panel (open shortcut functions and applications, adjust sound brightness, etc.), power options (shutdown, shut down OPS, sleep and restart). The sidebar will automatically hide after 10 seconds without any operation in the expanded state;
Parameters
| Panel parameters | Size | 86” |
| Camera | Built-in 1300W camera + array microphone | |
| Backlight type | D-LED | |
| Resolution | 3840×2160 | |
| Display size (mm) | 1872（H）×1053（V） | |
| Pixel pitch (mm) | 0.315(H) x 0.315(V) | |
| Response time | 8ms (typ.) | |
| Brightness | 350nit | |
| Contrast | Minimum 800, typical 1200 | |
| Viewing Angle | 178° (vertical, horizontal) | |
| color | 1.07B | |
| Color saturation (sRGB) | 99% | |
| Display Scale | 16:9 | |
| Refresh rate | 60Hz | |
| Touch parameters | Touch specifications | Infrared touch frame |
| Glass specifications | 3mm tempered glass | |
| Touch points | 20点 | |
| Response time | <8ms | |
| Touch accuracy | More than 90% of the touch area is ±1 mm | |
| Output format | HID Standard | |
| Theoretical clicks | Unlimited | |
| Touch diameter | Single point 2.5mm | |
| System Parameters | Plan | T982 |
| CPU | CORTEX Quad-core A55+NPU 2.6 Tops | |
| Memory | 4G | |
| Storage | 32GB | |
| System version | Android 11.0 | |
| Signal interface | MIC input port | *1 (3 in 1 port) |
| VGA input interface | *1 | |
| Audio Input Interface | *1 | |
| HDMI input interface | *3 | |
| USB 2.0 | *2 | |
| Output Interface | Earphone OUT | *1 (3 in 1) port |
| Other interfaces | TOUCH-USB | *1 |
| RS232 | *1 | |
| Network | RJ45 input interface | *1 |
| WiFi | 2.4G WiFi + 5G screen projection hotspot | |
| Structural dimensions | Net weight | 63KG |
| Gross Weight | 74KG | |
| Bare metal dimensions | 1953.36（L）*88.5（W）*1164.95（H） | |
| Packing size | 2105*（L）*205（W）*1335（H） (integrated box) | |
| Housing Material | Aluminum profile/sheet metal | |
| Power consumption | Power input voltage | 100 V ~ 240 V/AC，50/60 Hz |
| Machine power | ≤288W (excluding OPS), supporting OPS power ≤80W | |
| Standby power | <0.5W | |
| Speaker specifications | Stereo sound, 2*10W (±15%) high and low bass speakers | |
| Work Environment | Operating temperature | -10℃～50℃ |
| Operating humidity | 20%～85% RH Non-Condensing | |
| Storage temperature | -10℃～60℃ | |
| Storage humidity | 10%～90% RH Non-Condensing | |
| Appendix | Power cord | 1 piece (1.5m) |
| Manual | 1 | |
| Remote control (with batteries) | 1 | |
| Wall mount | 1 | |
| Touch pen | 1 | |
| HDMI cable | 1(1.5m) |

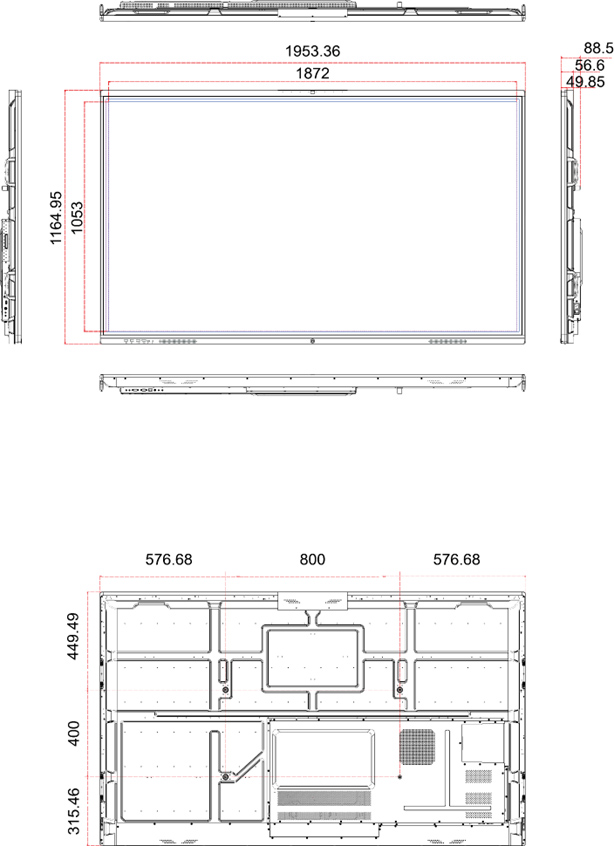

Product size
