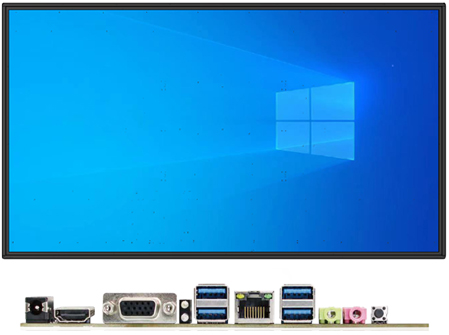

75-inch four-sided infrared touch Windows all-in-one machine X86 structure, Win10 system, fourth-generation i5 8+128G
Product name
75-inch infrared touch Windows all-in-one computer
Product model
WPS-C7500-L（BWR）
Specifications
X86 structure, Win10 system, fourth-generation i5 8+128G
Main features
Tempered anti-riot, integrated display, touch, PC, no external connection wires
- Parameters
Product name
75-inch infrared touch Windows all-in-one computer
Product model
WPS-C7500-L（BWR）
Specifications
X86 structure, Win10 system, fourth-generation i5 8+128G
Main features
Tempered anti-riot, integrated display, touch, PC, no external connection wires
Product Introduction
75-inch infrared touch windows all-in-one computer, using internationally renowned brand LCD panel, decoding resolution high-definition 1920*1080 resolution, low power consumption, wide viewing angle. Side-entry LED backlight, more uniform display brightness, wider color gamut. Industrial-grade design, with ultra-high reliability and high stability. Aluminum alloy frame, fine spraying, wire drawing process, safety appearance design, rounded corners, no sharp edges on the surface. Compared with traditional computers, it has a simpler appearance, more efficient and safer use, and more convenient operation.
Features
- 10-point high-precision infrared touch
- High integration: integrated HDMI/VGA/Ethernet/onboard WIFI in one, simplifying the overall design.
- Chipset: Intel HM87.
- High definition: supports up to 1920*1080 decoding.
- Full functions: supports horizontal and vertical screen playback, with hardware one-key restore function, network wake-up, scheduled startup function, power-on auto-start, USB data import and other functions.
Specifications
| Body parameters | Product color | Black |
| Product Type | Information release screen | |
| Optimal viewing distance (m) | ≥1m | |
| Release Date | 2023 | |
| Energy efficiency rating | First-class energy efficiency | |
| Product size | Backlight type | LED vertical backlight |
| Screen size ratio | 75 inches, 16:9 | |
| Screen parameters | Touch method | 10-point high-precision infrared touch |
| Resolution | 3840*2160 | |
| Brightness | 350cd/m2 | |
| Contrast | 3000:1 | |
| Display Color | 1.07B | |
| Perspective | Full viewing angle 178° | |
| Brightness adjustment | Debuggable | |
| Machine size | Length 1726mm*Height 1004.7mm*Thickness 90.9m | |
| Display area | 1649.664mm(width)×927.936mm(height) | |
| Motherboard Configuration | CPU | Intel 4th generation i5 |
| Running Memory | Memory: 8GB DDR3 | |
| Storage Flash | Default configuration: 128GB | |
| Video | Supports high definition It has powerful computing performance, 2D/3D graphics processing capabilities and full HD video encoding and decoding capabilities. HDMI 1.4 standard display interface | |
| Trumpet | 8 ohm 10W dual-channel audio amplifier output | |
| Port | 4*USB3.0, 1*RJ45, 1*HDMI OUT, 1*VGA OUT, audio output (green), Mic input (pink) | |
| Process appearance | Design | Novel and beautiful, reasonable layout, standard wiring. Ergonomic design; |
| Material | Aluminum profile, cold-rolled steel plate, not easy to deform, the cabinet and module components are tightly combined, and the bottom base is fixed with screws and not easy to shake. | |
| Surface treatment | Aluminum profile edging, tempered glass surface | |
| Aluminum paint sleeve optional | High gloss paint/matte paint/industrial paint, no need to worry about peeling or rusting | |
| Available styles | Rounded apple style and above styles are available. | |
| Power supply | Built-in safe and reliable power supply lead and special socket; | |
| Dimensions and weight | Machine power | ≤230W |
| Appendix | Power cord, wall bracket | |
| Package | Length 1850mm*Height 1125mm*Thickness 185mm | |
| Weight | 60kg | |
| Wall mounting aperture | 600*500mm | |
| Work Environment | Operating temperature | -10～+50℃ |
| Operating humidity | 10～98% | |
| Storage humidity | 10～98% |
Product size
