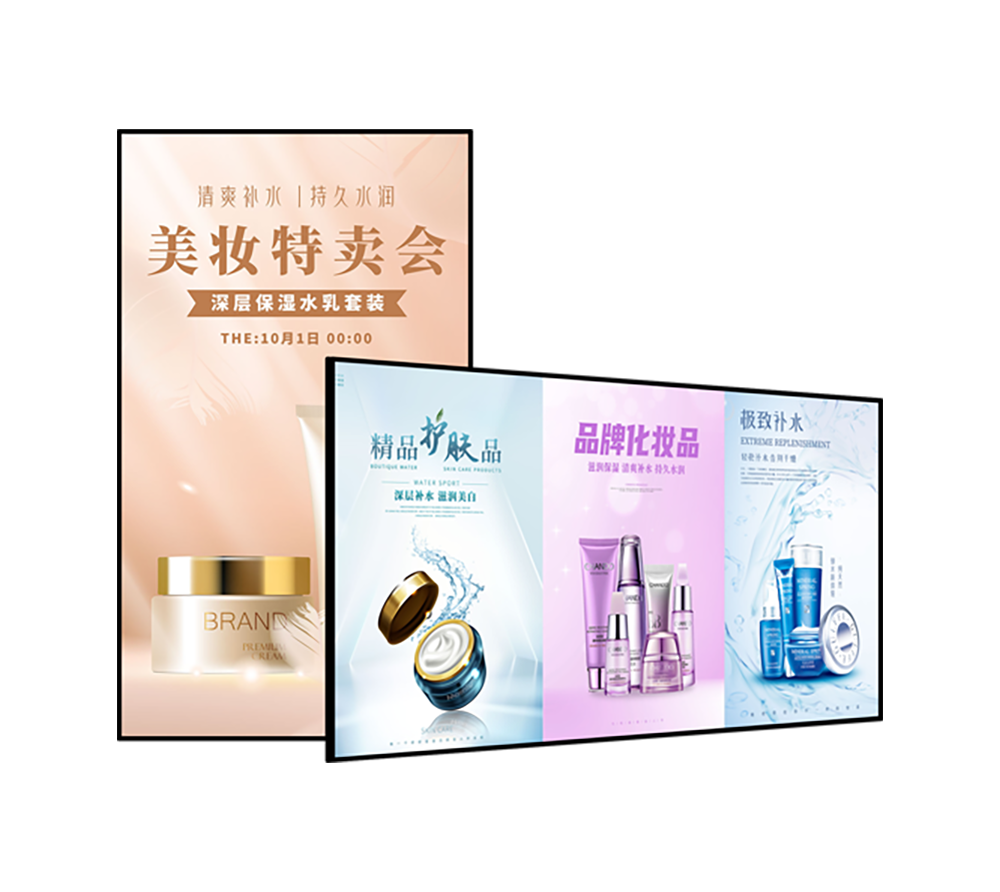

Three narrow and one wide hanging 22-inch information release screen 1+8G 1080P
Product name
22-inch information release screen hung horizontally with three narrow and one wide.
Product model
WPS-C2200-L（E）
Specification parameter
1+8G 1080P
Key property
Cloud management, borderless, 24 hours a day, smooth Android9 system.
- Parameters
Product name
22-inch information release screen hung horizontally with three narrow and one wide.
Product model
WPS-C2200-L（E）
Specification parameter
1+8G 1080P
Key property
Cloud management, borderless, 24 hours a day, smooth Android9 system.
Product introduction
22-inch information release screen, using internationally renowned brand LCD panel, decoding resolution of HD 1920*1080, low power consumption and wide viewing angle. Side-entry LED backlight has more uniform display brightness and wider color gamut. Industrial design, with super high reliability and high stability. Information release screen is a platform for centralized management and control of information release for chain applications. The system can be centralized, regionalized and managed by single terminal, realizing the unification of remote publishing and management.
Functional characteristics
- High integration: integrating USB/LVDS//HDMI/ Ethernet /WIFI to simplify the design of the whole machine.
- Rich expansion interface: support 100M/10M adaptive Ethernet; 2 USB 2.0 host；; 1 HDMI IN interface, which can meet the requirements of various peripherals in the market.
- High definition: maximum support for 1920*1080 decoding.
- Full-featured: support for horizontal and vertical screen playback, scrolling subtitles, timing switch, USB data import and other functions.
- Convenient management: humanized playlist background management software is convenient for management and control. Play the log, which is convenient to understand the playback situation.
- ETV information publishing software. You can publish information videos through computer client, IE browser or WeChat applet.
Specification parameter
| Subject parameter | Product color | black |
| Product category | Information release screen | |
| Optimum viewing distance (m) | ≥1.5m | |
| listing date | 2022 | |
| Energy efficiency index | First-class energy efficiency | |
| Product size | Overall machine size | 493×283×37.5mm |
| Screen display size | 22 inches, display size: 478.656 * 260.28mm * 803.5mm. | |
Screen parameters | Screen resolution | 3840*2160 |
| HDR display | Support | |
| Aspect ratio | 16: 9 | |
| Backlight type | LED backlight | |
| Screen level | A+ | |
| backlight | Direct type | |
| Screen rate | 60Hz | |
| Response time | 8ms | |
| Scanning mode | Sequential scanning | |
| Decoding resolution | 3840*2160 | |
| Horizontal viewing angle (degree) | ±178° | |
| Vertical viewing angle (degree) | ±178° | |
| Speaker parameters | Number of speakers | 2个 |
| Output rating | 2×5W(8Ω）@1khz.THD+N＜10% | |
| USB2.0 interface | 2 | |
| HDMI input | 1, support 1080P@60Hz, 4K@30Hz input. | |
| RJ45 interface | 1, 10M/100M adaptive Ethernet | |
| USB support format | Support H.264/MVC/MPEG 1/MPEG 2/MPEG 4/AVS+(AVS-P16)/VC-1/VP6/8 1080p @ 60 fps video decoding; Support VP9 10bit,FHD@60fps video decoding; Support low-latency video decoding. Support JPEG hardware decoding, with a maximum of 64 million pixels; Support MJPEG Baseline decoding; | |
| Network connections | Support | |
| Attended mode | Wired /WIFI(2.4G) | |
| Bluetooth | NO | |
| Motherboard configuration | Operating system | Android 9 Quad-core 32-bit Cortex-A53 |
| Random Access Memory | 1GB | |
| Store | 8GB | |
| Power information | Power supply (w) | 25W |
| Standby power (w) | <2.5W | |
| Operating voltage (v) | AC110-220V，50/60Hz | |
| Packaging information | Weight of the whole machine (Kg) | Net weight is 2.5Kg, and gross weight is 3.2Kg |
| Packing list | Information release screen ×1, remote control ×1, instruction manual ×1 | |
| Working environment | Working temperature | 0℃-50℃ |
| Working humidity | 20%-80% (non-condensing) | |
| Storage temperature | -20℃-65℃ |

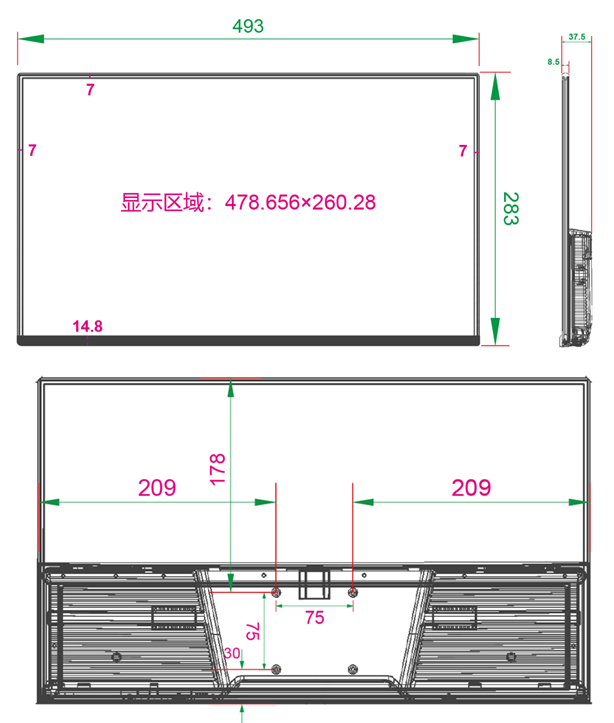

Product size
