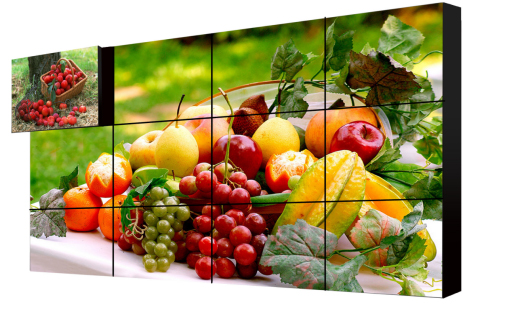

46-inch 1.7mm splicing screen
1. Ultra-narrow frame and 1.7mm physical flat-fell seam design.
2. Support dynamic backlight dimming technology for better picture performance.
3. Support one-button splicing and USB burning.
4.3D noise reduction technology, high-definition image quality display.
5. Highlight LED backlight display design, wide viewing angle display.
6. Support 178 ultra-wide viewing angle
7. Including accessories such as power cord and network cable.
- Parameters
1. Ultra-narrow frame and 1.7mm physical flat-fell seam design.
2. Support dynamic backlight dimming technology for better picture performance.
3. Support one-button splicing and USB burning.
4.3D noise reduction technology, high-definition image quality display.
5. Highlight LED backlight display design, wide viewing angle display.
6. Support 178 ultra-wide viewing angle
7. Including accessories such as power cord and network cable.
Product parameters:
| Show | Model | WPS-F4600-1.7mm |
| Display size | 46 inches | |
| Patchwork | 1.7mm | |
| Backlight type | D-LED | |
| Display resolution | 1920*1080 | |
| Display Scale | 16 : 9 | |
| Brightness | 300cd/㎡(center point, typical value) | |
| Contrast | 3000：1 | |
| Viewing angle | 178 degrees | |
| Response time | 8ms(Gray To Gray) | |
| Color Depth | 16.7M | |
| Interface | Input Interface | USB*1 + HDMI*1 + DVI*1 + RS232 IN*1 |
| Output Interface | RS232 OUT*2 | |
| Power parameters | Power Input | AC 220V~50Hz |
| Power consumption | ＜120W | |
| Work Environment | Run time | 7*16h |
| Service life of the whole machine | 30000h | |
| Operating temperature | 0℃~40℃ | |
| Operating humidity | 20%~80% | |
| Structure | Material | Hardware structure + plastic back shell |
| Dimensions | 1020.8*575.4*89.4(mm), see the structural dimension drawing for details | |
| Packing size | 1160*260*745( mm) | |
| Installation | Wall Mount | |
| Net weight/gross weight | 13kg (single) / 29kg (double) | |
| Attachment list | AC power cord, warranty card, network cable, hook screw, remote control (optional) | |
| Other | After-sales service | One-year warranty |

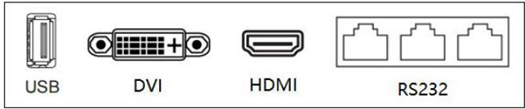

Control and I/O Ports:

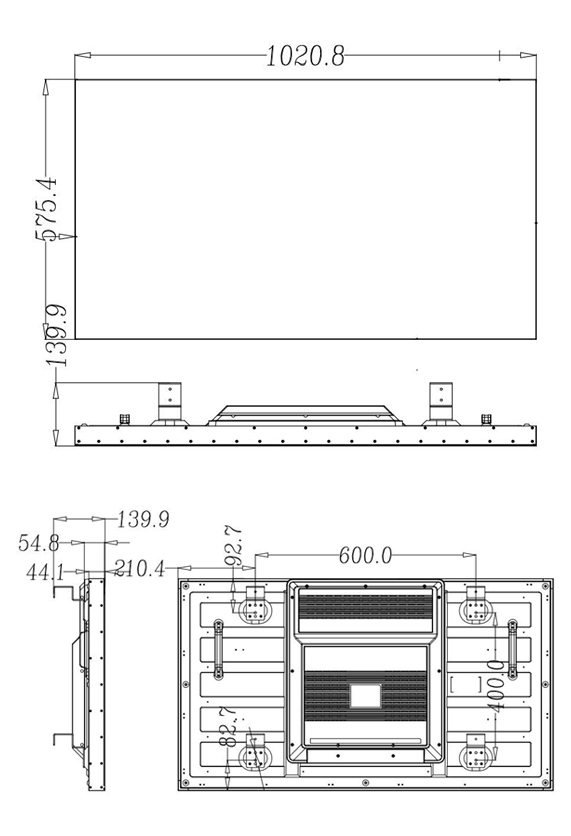

Product size:
