Ultra-narrow stitching, the ultimate stitching effect: LCD stitching unit, using ultra-narrow display panel, ultra-narrow design makes the gap between screens smaller, and its physical width is only 1.7mm, which can shorten the distance of each screen, present you with a more complete and coherent large-screen image, make the real area fuller and make your work efficiency higher;
Modular liquid crystal unit of profile, easy to install and maintain;
LED backlight, the most advanced backlight system, lattice crystal arrangement, bright bright field, low light leakage in dark field;
It has the advantages of high-definition FHD picture quality, extremely high text clarity, high stability and long service life, light and thin appearance, no radiation and low power consumption. It is designed in strict accordance with international and industry standards, and has gradually become the mainstream of the terminal display market, becoming the best choice for large-screen splicing display equipment;
Intelligent splicing of pictures, intelligent combination at will, free collocation of single screen and multi-screen;
Up to 500nit screen brightness, good color reproduction and realistic picture;

Product parameters:

Panel	Model	WPS-F5500-1.7mm
	LCD screen size	55 inches
	Resolution	3840*2160
	Aspect ratio	16:9
	Brightness	350cd/㎡
	Contrast ratio (typ)	3000:1
	Viewing angle	178 degrees
	Response time (ms)	5（ms）
	Viewing area	1209.6×680.4mm
	Display Color	1.07B
Power supply	Voltage	100V-240,50-60Hz
	Maximum	≤200W
	Standby	≤3W
Environment	Operating temperature (°C)	0℃～50℃
	Storage temperature	-20℃～60℃
	Storage humidity	10%～90%
	Operating humidity	10%～90%
Input Interface	2-way HDMI	The maximum supported signal input is 3840×2160@30HZ. Other resolutions are backward compatible.
	1 RJ45	R232 control signal input, IR signal input
	1-way USB	Support multimedia video, picture, text file viewing, program upgrade
Output Interface	2-way RJ45	R232 control signal output, IR signal input loop output
Dimensions and weight	Net weight	约25Kg
	Physical seam size (mm)	1.7mm

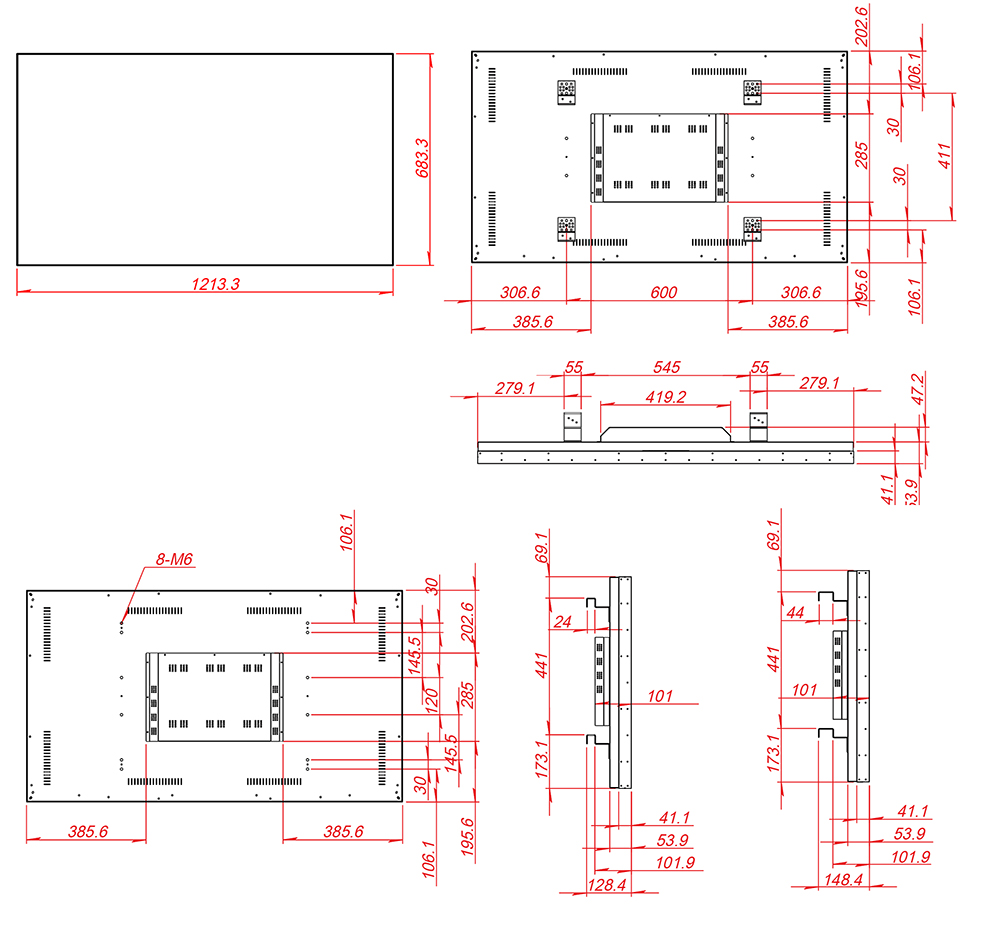

	Unit size (W×H×D)	1211.7×682.6×55mm
Industry Standards	Quality Standards	China Compulsory Certification (CCC)
Industry Standards	Environmental standards	All components and auxiliary materials meet environmental protection standards
Other	Installation	Cabinet type, wall type, bracket type
	Appearance Color	Black
	How to operate	RS232 serial port control
