Business oxidation black appearance, slim and ultra-narrow design, high-precision infrared, touch control, smart pen writing, smooth Android11.0 system.

Parameters

Product name

55 inch 4K anti-riot touch all-in-one machine

Product model

PFT-F55EX

Product configuration

4+32G

Key property

Business oxidation black appearance, slim and ultra-narrow design, high-precision infrared, touch control, smart pen writing, smooth Android11.0 system.

产品详情

Product introduction

55-inch interactive flat panel, using internationally renowned brand LCD panel, ultra-high definition 3840*2160 resolution, low power consumption and wide viewing angle. Direct LED backlight source, more uniform display brightness and wider color gamut. Industrial design, with super high reliability and high stability. Touch technology adopts high-precision infrared touch frame, and the resolution through interpolation algorithm can be as high as 32767*32767.

Functional characteristics

1. Ultra-thin aluminum front frame (thickness 23.5mm), surface sprayed with fine sand and anodized, zinc alloy plated corner code, sheet metal back cover, the whole machine is super metallic and actively dissipates heat;

2. Anti-glare tempered glass is standard, which protects the LCD glass and enhances the visual effect, protecting the viewing vision and improving the touch experience;

3. Standard high-precision infrared touch bar:

(1) touch accuracy < 1 mm;

(2) Support two 2mm pen-tip books to be written at the same time;

③ Support 5 3mm pen tips to write at the same time;

(4) Support multiple people to write small characters within 1cm high;

⑤ The recognition accuracy of two-color pen is 100%; (Need the support of Android whiteboard software)

⑥ The pen height is less than 1 mm, and writing foreign characters is not Lian Bi (meeting the standards of UNESCO supplier Promethean);

4. The structure is designed according to the low touch zero sticker, which makes the touch writing experience super strong;

5. Operating system: dual-system free switching, Android 11.0 version and windows10 version;

6. The sound of the loudspeaker is pre-positioned to prevent the sound effect from deteriorating due to the embedded environment;

7. Use the OPS slot of international common standard, with integrated plug-in design, which is convenient for upgrading and maintenance, and there is no visible connecting wire of computer module outside, so the body is beautiful;

8. Support gesture side pull menu, which can quickly adjust brightness sound and switch signal sources;

9. Direct-type module backlight is mature, stable and durable;

10. Support WIFI wireless connection and wired network connection;

11. The system comes with functions such as screen projection, electronic whiteboard and annotation;

12. Front expansion ports: 1 PC-USB, 1 full channel -USB, 1 HDMI input, 1 Type-C and 1 TOUCHUSB are convenient for users to use external devices;

13. Support multi-touch screen. When the PC motherboard is used as a dual-system integrated machine, the touch box can be seamlessly switched between dual systems (windows/Android);

14. Android 11.0 system support, multi-theme system can be switched at any time, and startup LOGO can be customized.

15. Support Android and computer handwriting annotation function of any picture, and support real-life annotation and panoramic writing annotation function. Support gesture to pull the navigation bar sideways, and call out common function shortcut keys with one key;

Parameters

Panel parameters	Size	55”
	Backlight type	D-LED
	Resolution	3840×2160
	Display size (mm)	1209.6（H）×680（V）
	Pixel pitch (mm)	0.315(H) x 0.315(V)
	Response time	8ms (typ.)
	Brightness	300nit
	Contrast	Minimum 800, typical 1200
	Viewing Angle	178° (vertical, horizontal)
	color	1.07B
	Color saturation (sRGB)	99%
	Display Scale	16:9
	Refresh rate	60Hz
Touch parameters	Touch specifications	Infrared touch frame
	Glass specifications	3mm tempered glass
	Touch points	20点
	Response time	<8ms
	Touch accuracy	More than 90% of the touch area is ±1 mm
	Output format	HID Standard
	Theoretical clicks	Unlimited
	Touch diameter	Single point 2.5mm
System Parameters	Plan	T982
	CPU	CORTEX Quad-core A55+NPU 2.6 Tops
	Memory	4G
	Storage	32GB
	System version	Android 11.0
Signal interface	MIC input port	*1 (3 in 1 port)
	VGA input interface	*1
	Audio Input Interface	*1
	HDMI input interface	*3
	USB 2.0	*2
Output Interface	Earphone OUT	*1 (3 in 1) port
Other interfaces	TOUCH-USB	*1
Other interfaces	RS232	*1
Network	RJ45 input interface	*1
Network	WiFi	2.4G WiFi + 5G screen projection hotspot
Structural dimensions	Net weight	23KG
	Gross Weight	28KG

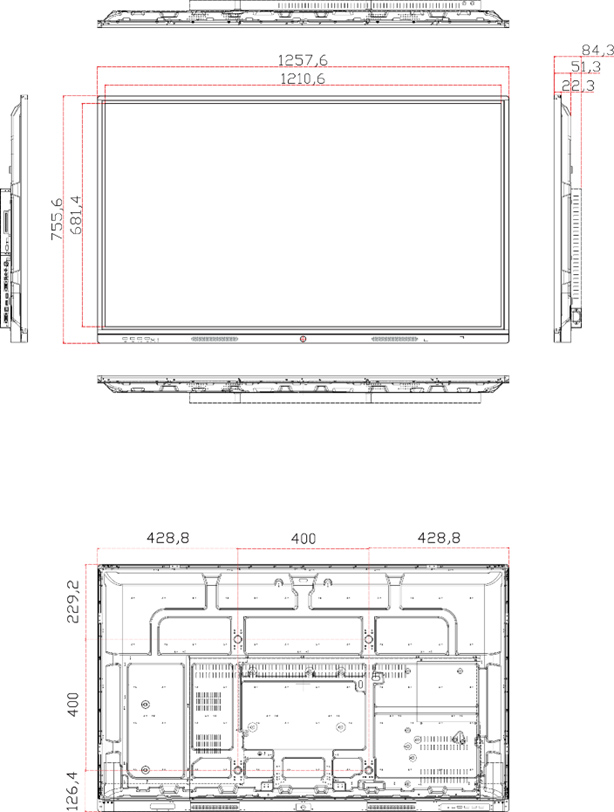

	Bare metal dimensions	1257.6(L)84.3(W)755.6(H) including OPS thickness.
	Packing size	1375(L)180(W)900(H) (integrated box)
	Housing Material	Aluminum profile/sheet metal
Power consumption	Power input voltage	100 V ~ 240 V/AC，50/60 Hz
	Machine power	≤150W (excluding OPS), supporting OPS power ≤80W.
	Standby power	<0.5W
	Speaker specifications	Stereo sound, 2*10W (±15%) high and low bass speakers
Work Environment	Operating temperature	-10℃～50℃
	Operating humidity	20%～85% RH Non-Condensing
	Storage temperature	-10℃～60℃
	Storage humidity	10%～90% RH Non-Condensing
Appendix	Power cord	1 piece (1.5m)
	Manual	1
	Remote control (with batteries)	1
	Wall mount	1
	Touch pen	1
	HDMI cable	1(1.5m)
