65-inch 4K vandal-proof touch all-in-one computer without camera 4+32G
Product name
65-inch 4K riot-proof touch all-in-one computer
Product model
PFT-F65EX
Product configuration
4+32G
Main features
Business oxidized black appearance, slim ultra-narrow edge design, high-precision infrared, touch, smart pen writing, smooth Android11.0 system
- Parameters
Product name
65-inch 4K riot-proof touch all-in-one computer
Product model
PFT-F65EX
Product configuration
4+32G
Main features
Business oxidized black appearance, slim ultra-narrow edge design, high-precision infrared, touch, smart pen writing, smooth Android11.0 system
Product Introduction
65-inch interactive flat panel, using internationally renowned brand LCD panel, ultra-high-definition 3840*2160 resolution, low power consumption, wide viewing angle. Direct-type LED backlight, more uniform display brightness, wider color gamut. Industrial-grade design, with ultra-high reliability and high stability. Touch technology uses high-precision infrared touch frame, and the resolution can be as high as 32767*32767 through interpolation algorithm.
Features
1. Ultra-thin aluminum front frame (thickness 28.26mm), surface sprayed with fine sand and anodized, zinc alloy electroplated corner code, sheet metal back cover, the whole machine has a strong metal texture and active heat dissipation;
2. Standard anti-glare tempered glass, protects LCD glass and enhances visual effects, protects viewing eyesight and enhances touch experience;
3. Standard high-precision infrared touch bar:
① Touch accuracy <1mm;
② Supports 2 2mm pen tips to write at the same time;
③ Supports 5 3mm pen tips to write at the same time;
④ Supports multiple people to write small characters within 1cm in height;
⑤ Two-color pen recognition accuracy is 100%; (requires support from Android whiteboard software)
⑥ Pen lift height <1mm, writing foreign characters without connecting strokes (meets the standards of Promethean, a supplier of UNESCO);
4. The structure is designed with low touch and zero stickers, and the touch writing experience is super strong;
5. Operating system: dual system free switching, Android 11.0 version and Windows 10 version;
6. The speaker is placed in front to prevent the sound effect from being deteriorated due to the embedded environment;
7. Use the internationally standard OPS slot, integrated plug-in design, easy to upgrade and maintain, no visible computer module connection cable on the outside, and beautiful body;
8. Support gesture side pull menu, the menu can quickly adjust the brightness and sound, and switch the signal source;
9. Direct module backlight, mature, stable and extremely durable;
10. Support WIFI wireless connection and network port wired connection;
11. The system comes with screen projection, electronic whiteboard, annotation and other functions;
12. Front expansion port: 1 PC-USB, 1 full-channel-USB, 1 HDMI input, 1 TYPE-C, 1 TOUCH USB for users to use external devices;
13. Support multi-touch screen, when paired with PC motherboard to make a dual-system all-in-one machine, the touch frame can seamlessly switch between the dual systems (windows/Android);
14. Android 11.0 system support, multi-theme system can be set and switched at any time, boot LOGO setting customization and other functions;
15. Support handwritten annotation function on any screen of Android and computer, support real-scene annotation and panoramic writing annotation function. Support gesture side-pull navigation bar, and call out common function shortcut keys with one click;
Parameters
| Panel parameters | Size | 65” |
| Backlight type | D-LED | |
| Resolution | 3840×2160 | |
| Display size (mm) | 1428.48（H）× 803.52（V） | |
| Pixel pitch (mm) | 0.315(H) x 0.315(V) | |
| Response time | 8ms (typ.) | |
| Brightness | 300nit | |
| Contrast | Minimum 800, typical 1200 | |
| Viewing Angle | 178° (vertical, horizontal) | |
| color | 1.07B | |
| Color saturation (sRGB) | 99% | |
| Display Scale | 16:9 | |
| Refresh rate | 60Hz | |
| Touch parameters | Touch specifications | Infrared touch frame |
| Glass specifications | 3mm tempered glass | |
| Touch points | 20点 | |
| Response time | <8ms | |
| Touch accuracy | More than 90% of the touch area is ±1 mm | |
| Output format | HID Standard | |
| Theoretical clicks | Unlimited | |
| Touch diameter | Single point 2.5mm | |
| System Parameters | Plan | T982 |
| CPU | CORTEX Quad-core A55+NPU 2.6 Tops | |
| Memory | 4G | |
| Storage | 32GB | |
| System version | Android 11.0 | |
| Signal interface | MIC input port | *1 (3 in 1 port) |
| VGA input interface | *1 | |
| Audio Input Interface | *1 | |
| HDMI input interface | *3 | |
| USB 2.0 | *2 | |
| Output Interface | Earphone OUT | *1 (3 in 1) port |
| Other interfaces | TOUCH-USB | *1 |
| RS232 | *1 | |
| Network | RJ45 input interface | *1 |
| WiFi | 2.4G WiFi + 5G screen projection hotspot | |
| Structural dimensions | Net weight | 32KG |
| Gross Weight | 38KG | |
| Bare metal dimensions | 1485×887.58×88.3mm | |
| Packing size | 1620（L）*200（W）*1070（H） (integrated box) | |
| Housing Material | Aluminum profile/sheet metal | |
| Power consumption | Power input voltage | 100 V ~ 240 V/AC，50/60 Hz |
| Machine power | ≤115W (excluding OPS), supporting OPS power ≤80W | |
| Standby power | <0.5W | |
| Speaker specifications | Stereo sound, 2*10W (±15%) high and low bass speakers | |
| Work Environment | Operating temperature | -10℃～50℃ |
| Operating humidity | 20%～85% RH Non-Condensing | |
| Storage temperature | -10℃～60℃ | |
| Storage humidity | 10%～90% RH Non-Condensing | |
| Appendix | Power cord | 1 piece (1.5m) |
| Manual | 1 | |
| Remote control (with batteries) | 1 | |
| Wall mount | 1 | |
| Touch pen | 1 | |
| HDMI cable | 1(1.5m) |

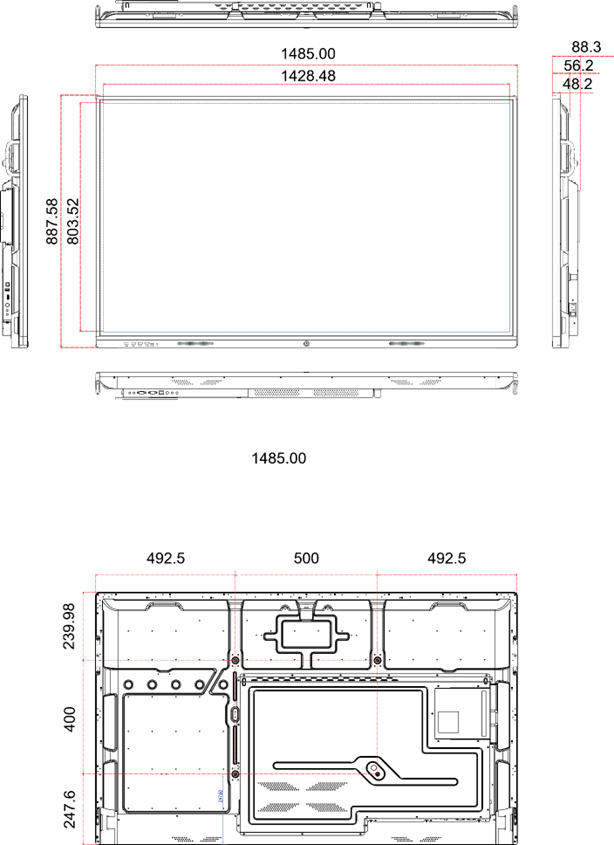

Product size
