Business oxidized black appearance, slim ultra-narrow edge design, high-precision infrared, touch control, smart pen writing, smooth Android 11.0 system

Parameters

Product name

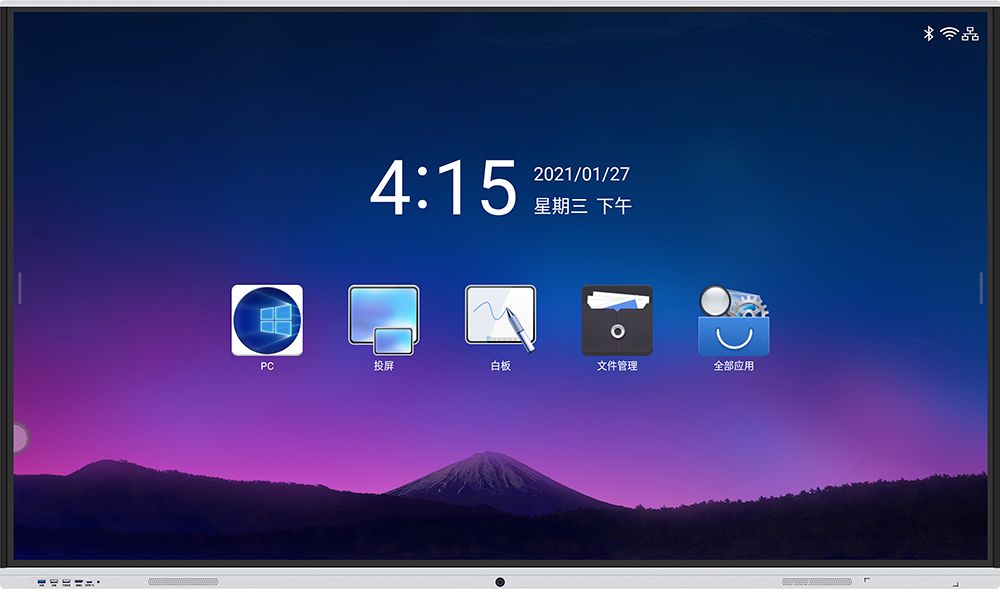

75-inch 4K riot-proof touch all-in-one computer

Product model

PFT-F75EX

Product configuration

4+32G

Main features

Business oxidized black appearance, slim ultra-narrow edge design, high-precision infrared, touch control, smart pen writing, smooth Android 11.0 system

Product details

Product Introduction

98-inch interactive flat panel, black aluminum profile appearance, using internationally renowned brand LCD panel, ultra-high-definition 3840*2160 resolution, low power consumption, wide viewing angle. Direct-down LED backlight, more uniform display brightness, wider color gamut. Industrial-grade design, with ultra-high reliability and high stability. Touch technology uses high-precision infrared touch frame, and the resolution can be as high as 32767*32767 through interpolation algorithm.

Features

1. Ultra-thin aluminum front frame (thickness 28.46mm), surface sprayed with fine sand and anodized, zinc alloy electroplated corner code, sheet metal back cover, the whole machine has a strong metal texture and active heat dissipation;

2. Standard anti-glare tempered glass, protects LCD glass and enhances visual effects, protects viewing eyesight and enhances touch experience;

3. Standard high-precision infrared touch bar:

① Touch accuracy <1mm;

② Supports 2 2mm pen tips to write at the same time;

③ Supports 5 3mm pen tips to write at the same time;

④ Supports multiple people to write small characters within 1cm in height;

⑤ Two-color pen recognition accuracy is 100%; (requires support from Android whiteboard software)

⑥ Pen lift height <1mm, writing foreign characters without connecting strokes (meets the standards of Promethean, a supplier of UNESCO);

4. The structure is designed with low touch and zero stickers, and the touch writing experience is super strong;

5. Operating system: dual system free switching, Android 11.0 version and Windows 10 version;

6. The speaker is placed in front to prevent the sound effect from being deteriorated due to the embedded environment;

7. Use the internationally standard OPS slot, integrated plug-in design, easy to upgrade and maintain, no visible computer module connection cable on the outside, and beautiful body;

8. Support gesture side pull menu, the menu can quickly adjust the brightness and sound, and switch the signal source;

9. Direct module backlight, mature, stable and extremely durable;

10. Support WIFI wireless connection and network port wired connection;

11. The system comes with screen projection, electronic whiteboard, annotation and other functions;

12. Front expansion port: 1 PC-USB, 1 full-channel-USB, 1 HDMI input, 1 TYPE-C, 1 TOUCH USB for users to use external devices;

13. Support multi-touch screen, when paired with PC motherboard to make a dual-system all-in-one machine, the touch frame can seamlessly switch between the dual systems (windows/Android);

14. Android 11.0 system support, multi-theme system can be set and switched at any time, boot LOGO setting customization and other functions;

15. Support handwritten annotation function on any screen of Android and computer, support real-scene annotation and panoramic writing annotation function. Support gesture side-pull navigation bar, and call out common function shortcut keys with one click;

Parameters

Panel parameters	Size	75”
	Backlight type	D-LED
	Resolution	3840×2160
	Display size (mm)	1649.6（H）× 927.9（V）
	Pixel pitch (mm)	0.315(H) x 0.315(V)
	Response time	8ms (typ.)
	Brightness	350nit
	Contrast	Minimum 800, typical 1200
	Viewing Angle	178° (vertical, horizontal)
	color	1.07B
	Color saturation (sRGB)	99%
	Display Scale	16:9
	Refresh rate	60Hz
Touch parameters	Touch specifications	Infrared touch frame
	Glass specifications	3mm tempered glass
	Touch points	20点
	Response time	<8ms
	Touch accuracy	More than 90% of the touch area is ±1 mm
	Output format	HID Standard
	Theoretical clicks	Unlimited
	Touch diameter	Single point 2.5mm
System Parameters	Plan	T982
	CPU	CORTEX Quad-core A55+NPU 2.6 Tops
	Memory	4G
	Storage	32GB
	System version	Android 11.0
Signal interface	MIC input port	*1 (3 in 1 port)
	VGA input interface	*1
	Audio Input Interface	*1
	HDMI input interface	*3
	USB 2.0	*2
Output Interface	Earphone OUT	*1 (3 in 1) port
Other interfaces	TOUCH-USB	*1
Other interfaces	RS232	*1
Network	RJ45 input interface	*1
Network	WiFi	2.4G WiFi + 5G screen projection hotspot
Structural dimensions	Net weight	43KG
	Gross Weight	53KG

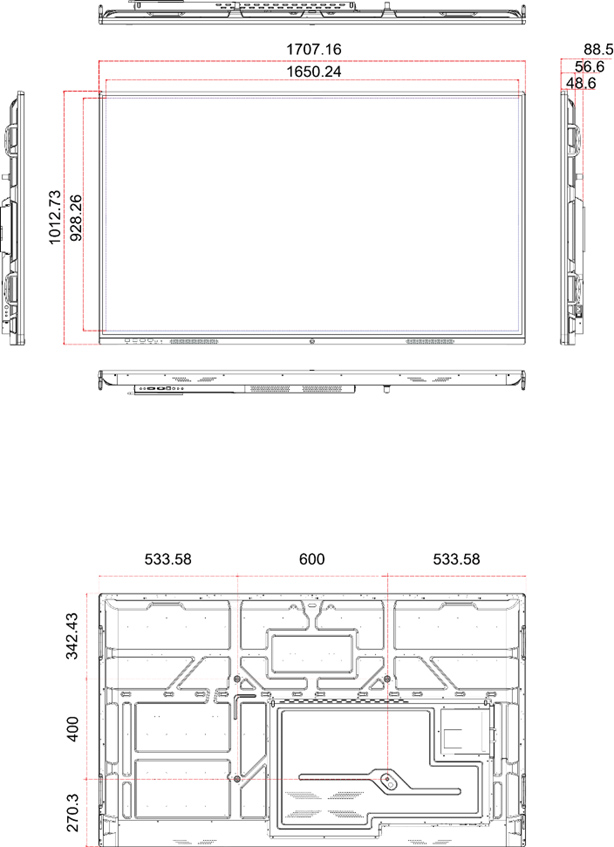

	Bare metal dimensions	1707.161012.7388.5mm
	Packing size	1860（L）205（W）1200（H） (integrated box)
	Housing Material	Aluminum profile/sheet metal
Power consumption	Power input voltage	100 V ~ 240 V/AC，50/60 Hz
	Machine power	≤285W (excluding OPS), supporting OPS power ≤80W
	Standby power	<0.5W
	Speaker specifications	Stereo sound, 2*10W (±15%) high and low bass speakers
Work Environment	Operating temperature	-10℃～50℃
	Operating humidity	20%～85% RH Non-Condensing
	Storage temperature	-10℃～60℃
	Storage humidity	10%～90% RH Non-Condensing
Appendix	Power cord	1 piece (1.5m)
	Manual	1
	Remote control (with batteries)	1
	Wall mount	1
	Touch pen	1
	HDMI cable	1(1.5m)
